Jun 09, 2026 7:49 am
Due to the high volume of inquiries regarding this DIY kit, I opened this topic to answer questions and discuss the kit.
https://diycnc.ca/product/laser-engraver-cnc-kit/
5 Replies
Jun 13, 2026 8:22 pm

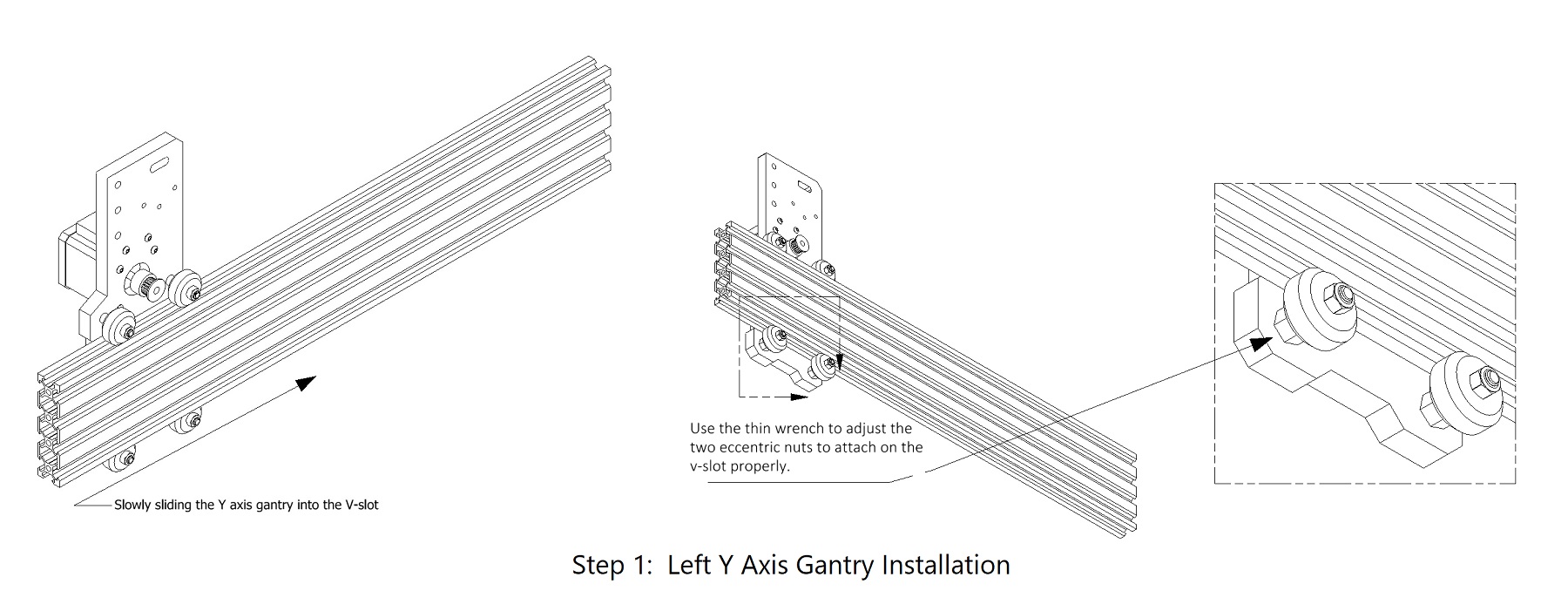

Step 1: Install Left Y Axis Gantry
Jun 16, 2026 7:47 pm

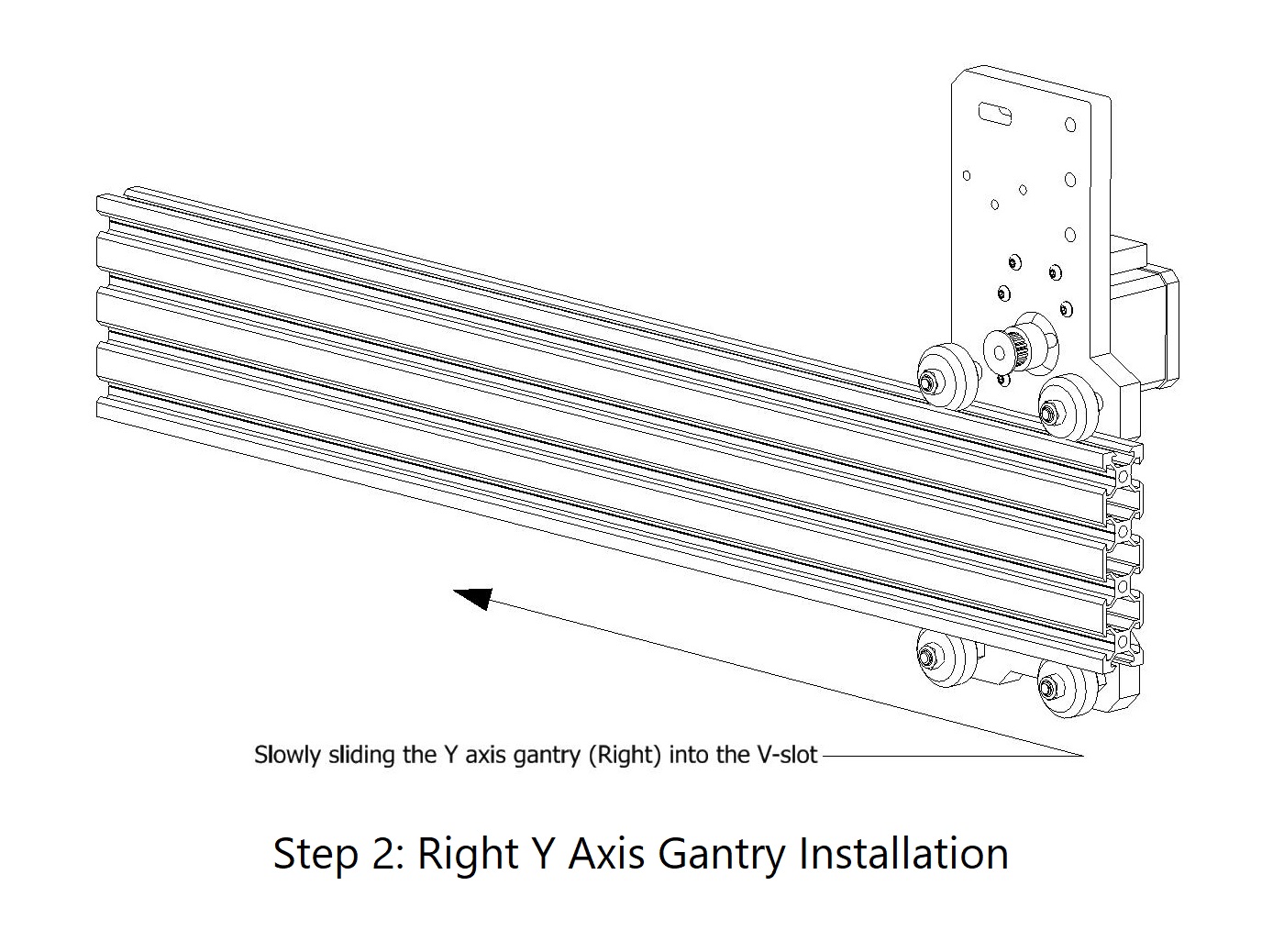

Step 2: Install Right Y Axis Gantry
Jun 24, 2026 7:25 am

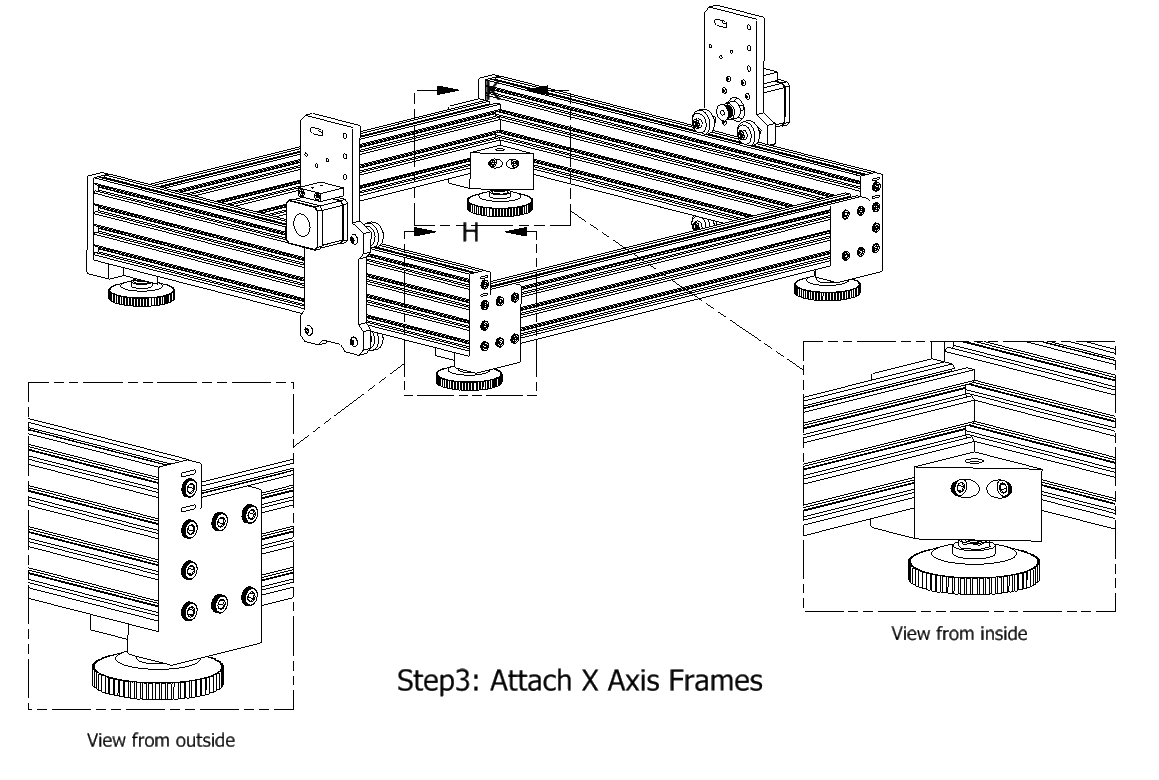

Step 3: Attach the X Axis Slot Aluminum Extrusion
- The X Axis Slot Aluminum Extrusion may be Eu-Standard not V-Slot
- Attach and install four frame levelers (for 2080/2060 frame only)
- Pre-install Sliding T-nuts (Sliding T-Nut)
- Or Hammer head T-nuts (Hammer Head T Nuts)
Jun 24, 2026 6:54 pm

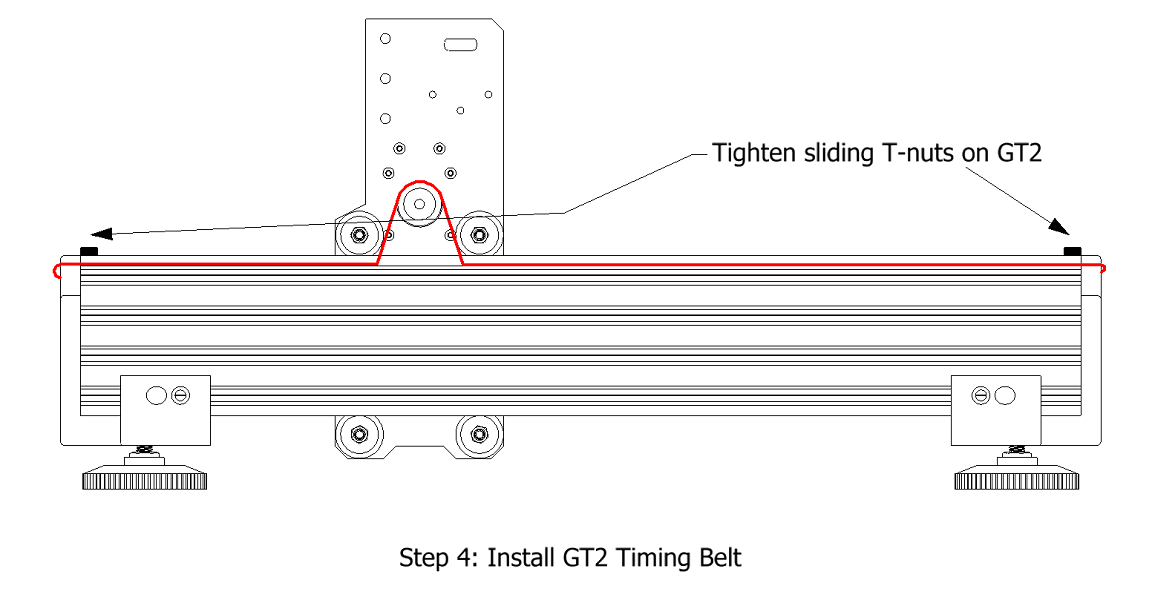

Step 4: Install the GT2 timing belt. Use the Sliding Nut + Hex Head Screw to tight the timing belt.
