1 Modulus Straight Gear Rack with Pre-Drilled Mount Hole

Name: 1 Modulus Straight Gear Rack with Pre-Drilled Mount Hole
SKU: 5213
Availability: InStock

Rated 0 out of 5

0 reviews | 53 sold

CAD$ 18.69 – CAD$ 79.29

1 Modulus Straight Gear Rack. Side installation stepper hole. Quenched and Unquenched.

Cross Section (W x H: mm)

Length (L)

Hole Type

Process

Clear

SKU: 5213 Category: Rack and Pinion Tag: GPC-1167

Item Name:	1 Modulus Straight Gear Rack with Pre-Drilled Mount Hole
Material:	C45 Steel Quenched or Unquenched

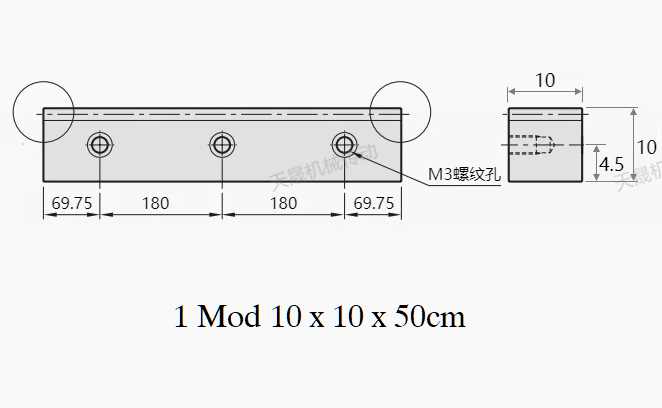

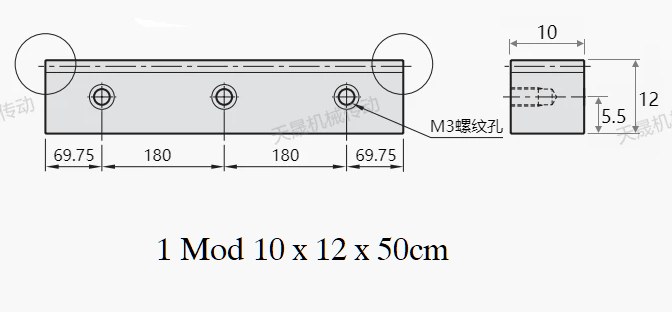

Specs:	Pitch: 3.14mm, Pressure Angle: 20 Degree Fore types pre-drilled mounts hole: Side Counterbore Hole, Side Thread Hole, Toothed Face Counterbore Hole, Back-side Thread Hole. Hole size for screw: M3 (50cm, 100cm) or M4 (150cm)
Measurement System:	Metric
PCs in Item:	1 PC
Manufacturer:	N/A, Made in China
Notes:	The rack end faces are machined for seamless extension and can be freely connected for extended use.

Weight	2 kg
Dimensions	100 × 5 × 5 cm
Cross Section (W x H: mm)	10 x 10, 10 x 12, 12 x 12, 15 x 15, 20 x 20
Length (L)	50CM, 100 CM, 150 CM
Hole Type	Side Mounting Counterbore Hole, Side Mounting Thread Hole, Toothed Face Mounting Counterbore Hole, Back-side Thread Hole
Process	Unquenched, Quenched
Brand	DIYCNC
