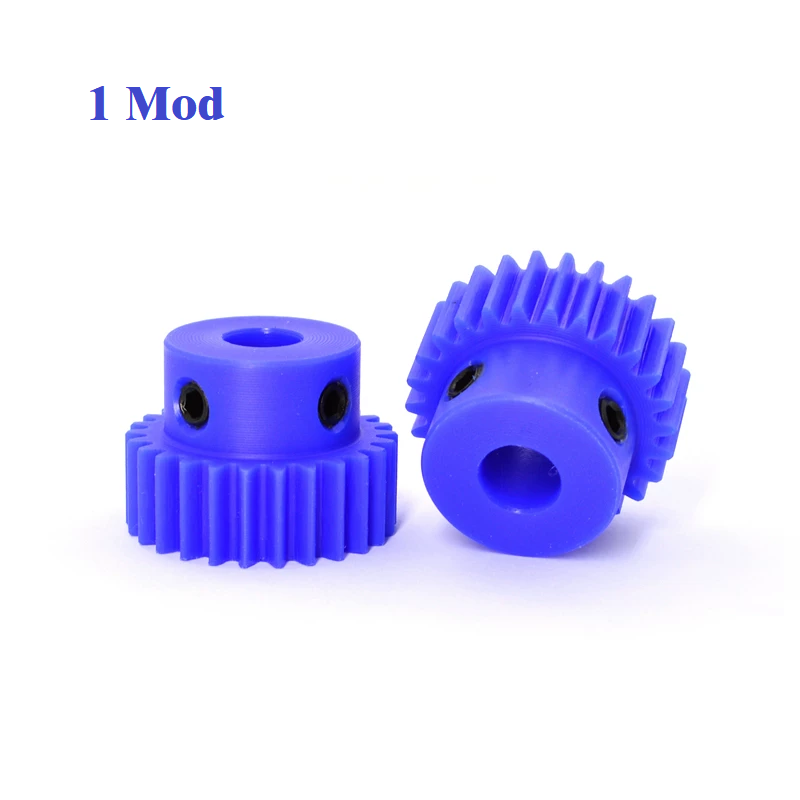

1 Mod Plastic Spur Gear 15-150

Rated 0 out of 5
0 reviews | 0 sold

CAD$ 5.79 – CAD$ 29.99

1 Mod Plastic Spur Gear 12-150 Tooth for Straight Gear

SKU: 27981 Category: Tag:
Item Name: 1 Mod Plastic Spur Gear 12-150 Tooth for Straight Gear
Feature: Bore Size: Ø4mm ~ Ø16mm
Material: Engineering Plastic
Measurement System: Metric
PCs in Item: 1 PC
Manufacturer: N/A, Made in China
Note: Please refer the table below for available bore size. Put the bore size in the ‘Order Notes’ when checking out.

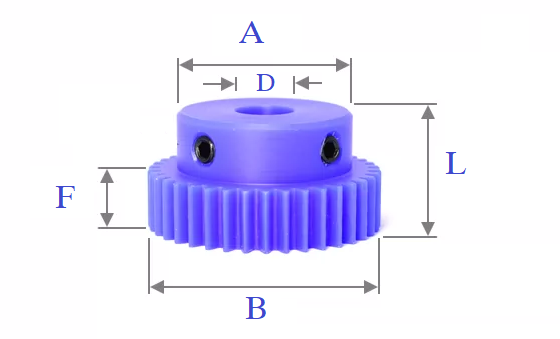

Specification (Units:mm)
Model A B F L D
15T 12 17 10 18 4,5,6,8
16T 12 18 10 18 4,5,6,8
18T 14 20 10 18 4,5,6,8,10
20T 16 22 10 18 4,5,6,7,8,10,12
22T 18 24 10 18 6,8,10,12
24T 20 26 10 18 5,6,8,10,12
25T 20 27 10 18 5,6,8,10,12
26T 20 28 10 18 6,8,10,12
28T 20 30 10 18 6,8,10,12
30T 20 32 10 18 5,6,7,8,10,12,14
32T 20 34 10 18 6,8,10,12
33T 20 35 10 18 6,8,10,12
35T 20 37 10 18 6,8,10,12
36T 20 38 10 18 6,8,10,12
38T 20 40 10 18 8,10,12
40T 35 42 10 20 8,10,12,14,15,16
42T 35 44 10 20 6,8,10,12
44T 35 46 10 20 6,8,10,12
45T 35 47 10 20 6,8,10,12
48T 35 50 10 20 8,10,12
50T 35 52 10 20 6,8,10,12,14,15,16
70T 40 72 10 20 8,10,12
80T 40 82 10 20 8,10,12,14,15,16
90T 40 74 10 20 8,10,12
100T 40 102 10 20 8,10,12,14,15,16
120T 40 122 10 20 8,10,12,14,15,16
150T 40 152 10 20 8,10,12,14,15,16
Weight 0.02 kg
Dimensions 15 × 15 × 6 cm
Tooth

15T, 16T, 18T, 20T, 22T, 24T, 25T, 26T, 28T, 30T, 32T, 33T, 35T, 36T, 38T, 40T, 42T, 44T, 45T, 48T, 50T, 55T, 60T, 70T, 80T, 90T, 100T, 120T, 150T
Brand

DIYCNC Canada
