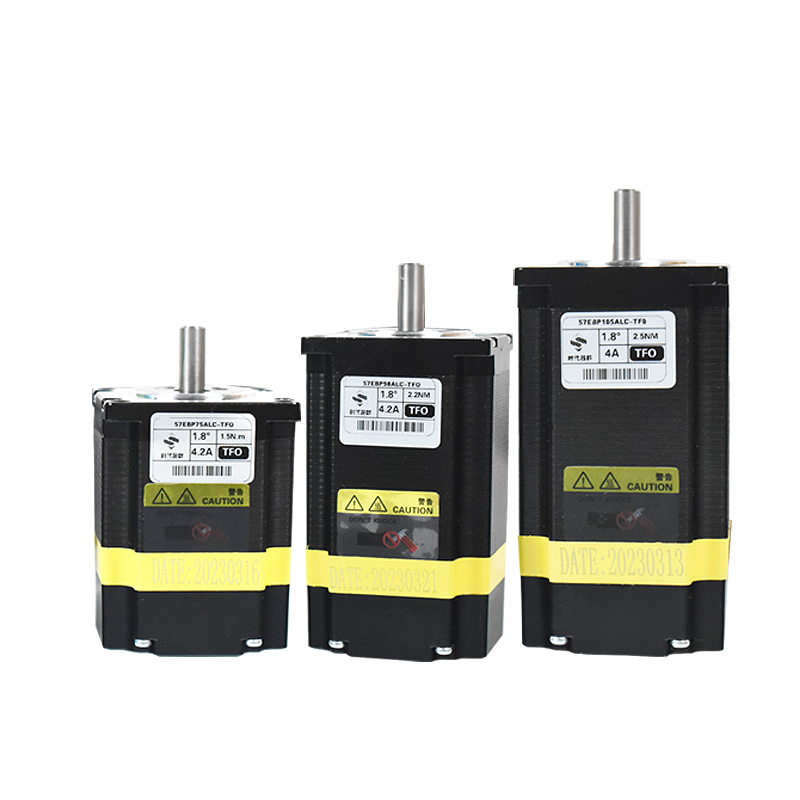

Nema 23 Closed Loop Stepper Motor or Kits

Name: Nema 23 Closed Loop Stepper Motor or Kits
SKU: 23291
Availability: InStock

Rated 0 out of 5

0 reviews | 0 sold

CAD$ 44.09 – CAD$ 96.09

Nema 23 Closed Loop Stepper Motor or Kits. Ship to USA, Canada

Length - Torque

Driver

Clear

SKU: 23291 Category: Nema 23 Stepper Motor Tag: GPC-222

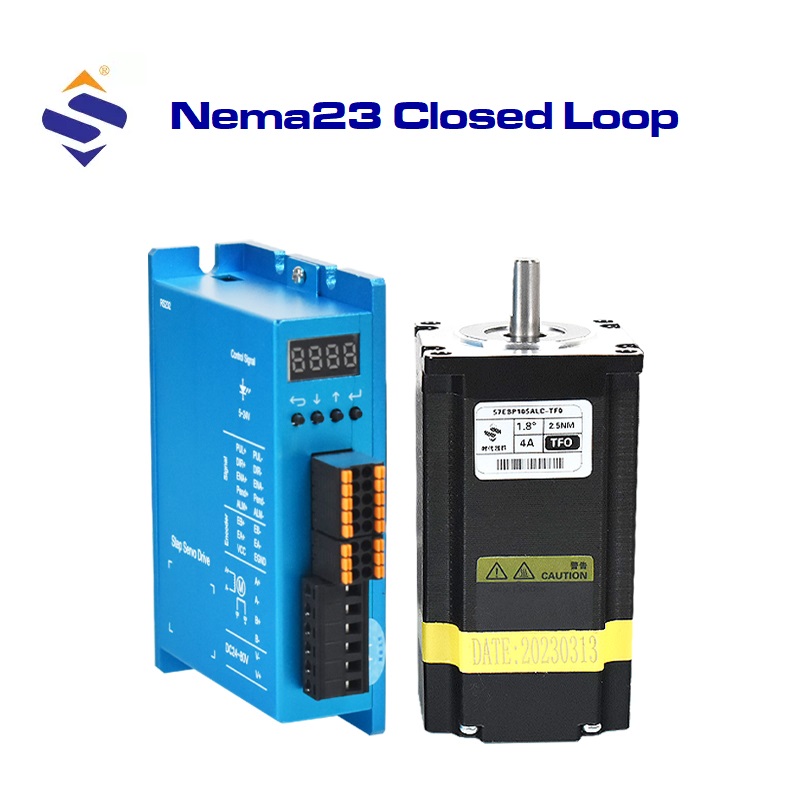

Item Name:	Nema 23 Closed Loop Stepper Motor Driver with LED, or with driver kits
Motor Specification:	2 Phase, Step Angle 1.8, NEMA 23 (57×57 mm), Closed Loop.
PCs in Item:	See Options. (Stepper Motor comes with 2 meters motor cable and encoder cable
Manufacturer:	ShiDaiChaoQun Co. Ltd., Beijing China
Reference:

Model#	Holding Torque	Rating Current	Operation Voltage	Phase Resistance	Inductance	Body Length	Encoder Lines	Shaft Length	Shaft Diameter
57EBP75ALC	1.5Nm	4.1A	24~48V	0.5Ω	1.8mH	75mm	1000P	21mm	8mm
57EBP98ALC	2.2Nm	4.1A	24~48V	0.5Ω	1.8mH	98mm	1000P	21mm	8mm
57EBP105ALC	2.5Nm	4.1A	24~48V	0.5Ω	1.8mH	105mm	1000P	21mm	8mm
57EBP143ALC	3.0Nm	4.1A	24~48V	0.5Ω	1.8mH	143mm	1000P	22mm	8mm

Weight	1 kg
Dimensions	20 × 15 × 10 cm
Length - Torque	75mm – 1.5Nm, 98mm – 2.2Nm, 105mm – 2.5Nm, 143mm – 3Nm
Driver	Motor Only, HBS57AJ-XK (No LED), HBS57AJ-XL (with LED)
Brand	ShiDaiChaoQun
