| Item Name: | Nema 23 Closed Loop Stepper Motor Bundle |
| Feature: | High performance closed loop nema 23 with optimized driver; Most useful combination with 400W SPU; |
| Material: | |
| Measurement System: | |

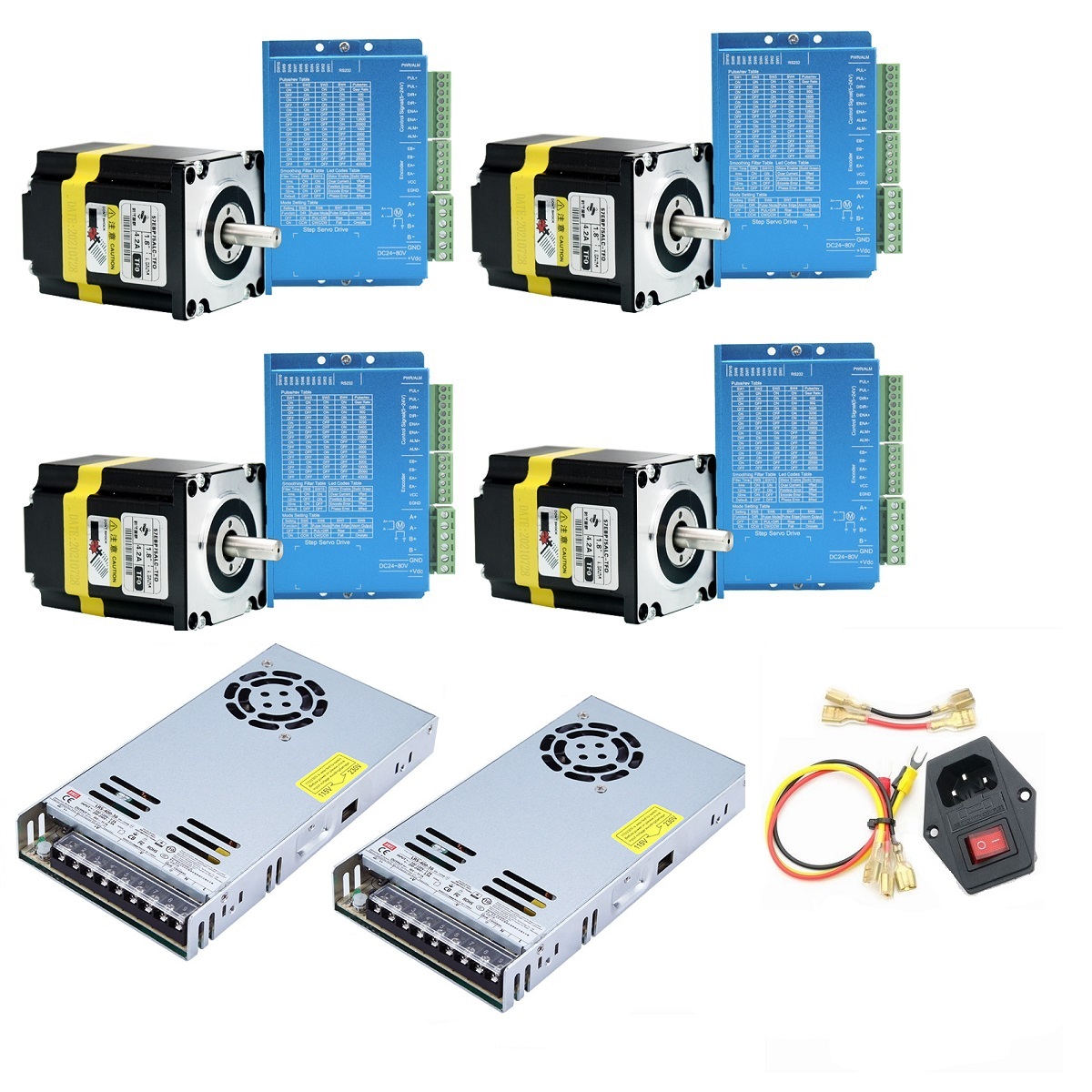

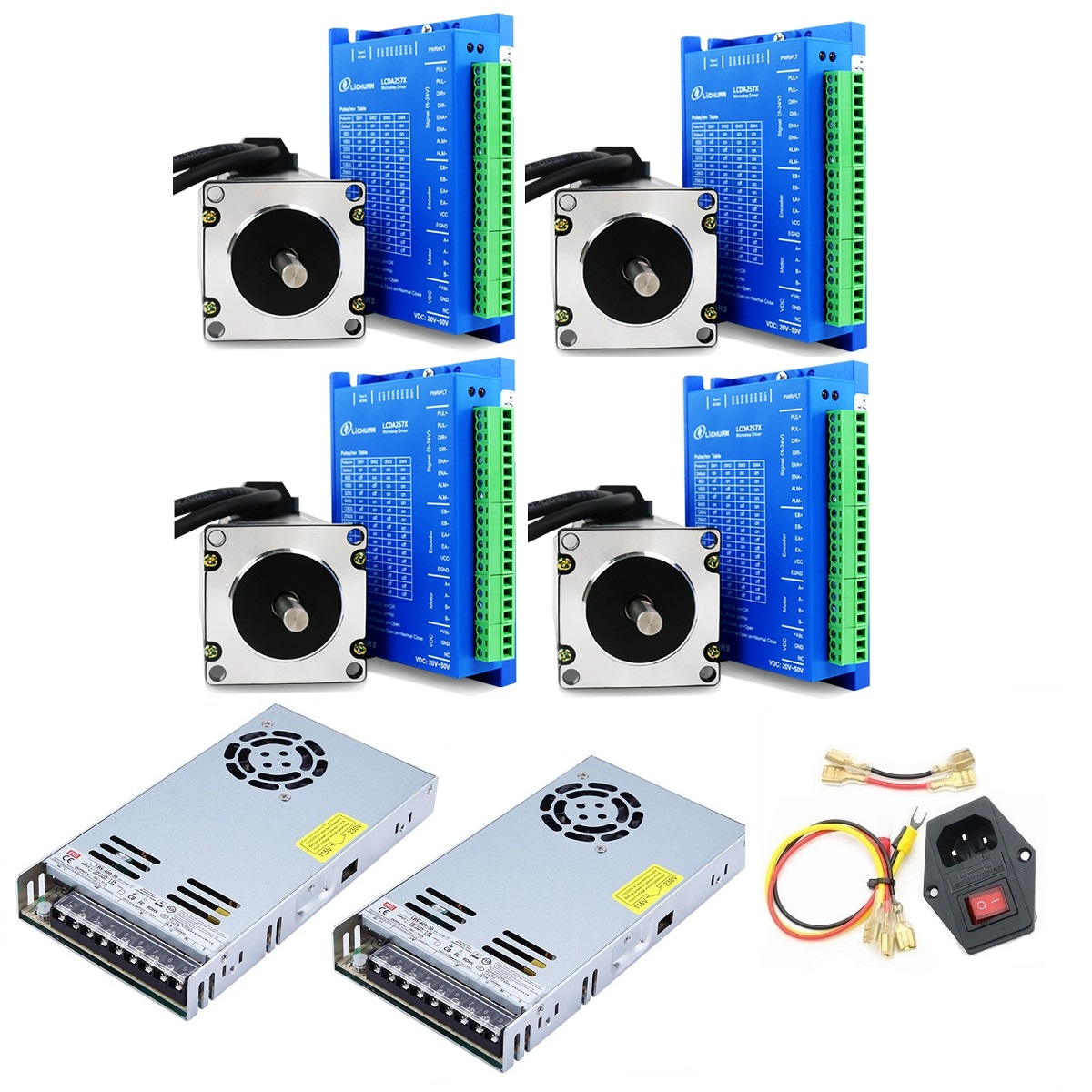

| PCs in Item: | 1 Sets: Closed-Loop Nema23 x 4, 400W 48V DC PSU x 2, Rocker Switch x 1 |
| Manufacturer: | ShenZhen XinLiChuan Electric Co., LTD, GuangDong, Made in China. Detailed Specification on official web site |
| Note: |
| Model# | Holding Torque | Rating Current | Operation Voltage | Phase Resistance | Inductance | Body Length | Encoder Lines | Shaft Length | Shaft Diameter |
|---|---|---|---|---|---|---|---|---|---|
| LC57H256 | 1.0Nm | 3.0A | 20~50V | 76mm | 1000P | 21mm | 8mm | ||
| LC57H265 | 1.5Nm | 3.0A | 20~50V | 85mm | 1000P | 21mm | 8mm | ||
| LC57H276 | 2.0Nm | 3.0A | 20~50V | 98mm | 1000P | 21mm | 8mm | ||
| LC57H282 | 2.2Nm | 4.0A | 20~50V | 102mm | 1000P | 21mm | 8mm | ||
| LC57H2100 | 3.0Nm | 4.0A | 20~50V | 123mm | 1000P | 21mm | 8mm | ||
| LC57H2112 | 3.5Nm | 4.0A | 20~50V | 123mm | 1000P | 21mm | 8mm |
