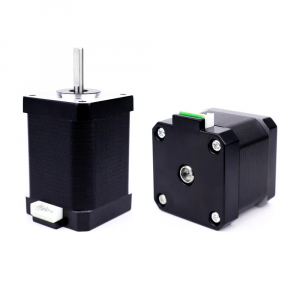

| Item Name: | NEMA 17 Open Loop Stepper Motor and Driver – PFDE |

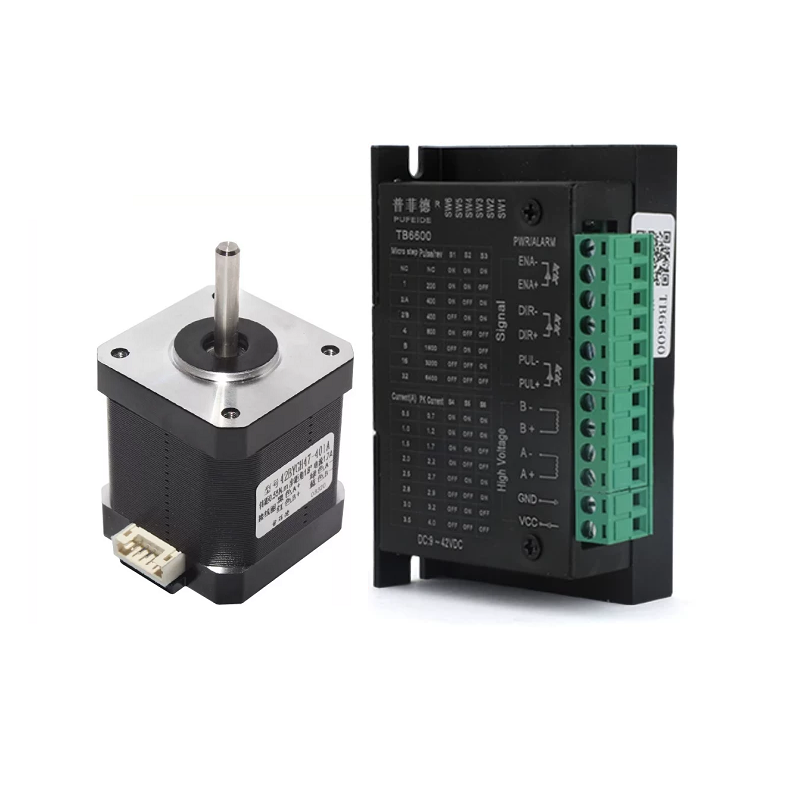

| Feature: | High performance nema 17 with TB6600 driver; |
| Material: | |
| Measurement System: | |
| PCs in Item: | 1 PC (Stepper Motor or Driver) or 1 Kit (Stepper Motor and Driver). Stepper Motor comes with a motor cable |
| Manufacturer: | PFDE, Made in China |
| Note: | Two types of the nema 17 cable: 4Pin of XH 2.54 or 4Pin of Dupont, please specify in the ‘Order Notes’ when checking out. Stepper Motor Technical Support – DIYCNC |
| Model | Max RPM | Holding Torque | Voltage (V) |
Rated Current (A) |
Weight (g) |
Body Length (mm) |
Shaft Diameter (mm) |
| 42BYGH34 | 800 | 0.28 | 24 | 1.5 | 0.25 | 5 | 34 |
| 42BYGH39 | 800 | 0.4 | 24 | 1.5 | 0.3 | 5 | 40 |
| 42BYGH47 | 800 | 0.55 | 24 | 1.5 | 0.4 | 5 | 48 |
| 42BYGH60 | 800 | 0.7 | 24 | 1.5 | 0.5 | 5 | 60 |
