High Precision Automatic Z Axis Z Probe

Rated 0 out of 5
0 reviews | 29 sold

CAD$ 19.09 – CAD$ 67.29

High Precision CNC Automatic Z Axis Z Probe with dust blow. Input voltage DC 10 – 30V.

SKU: 3937 Category: Tag:
Item Name: High Precision Automatic Z Axis Z Probe
Measurement System: Metric
Feature: Normal Closed
Specification:
  • Size(mm): Base plate Ø55mm, High 62mm,66mm, Top plate (sensor plate) Ø21mm
  • Magnetic base
  • Sensor plate effective distance: 4mm/5mm
  • Operation Voltage: DC 10~30V (Suggestion 24V) 20mA(max)
  • Protection Level: IP67

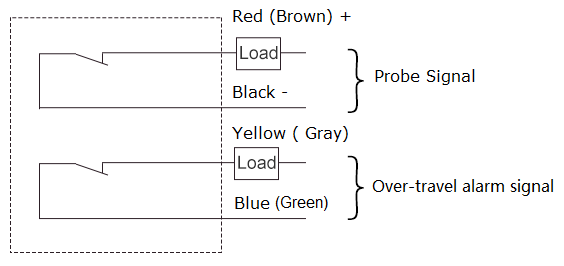

  • Cable: 200CM 4 colors wire cable with Stainless Steel Flexible Conduit
  • Output mode: Normal Closed (NC)
  • Repeat Accuracy: 0.01mm~0.001mm (on speed: 50~200mm/min, based on software system)
PCs in Item: 1 PC
Manufacturer: JHONGYANG CNC, ShanDong China


Weight 0.5 kg
Dimensions 10 × 10 × 8 cm
Model

Without dust blow, With dust blow, JS-66RG High Precision, Water Resistance Model, Normal Closed 4-Wire High Precision
Brand

HongYang CNC
