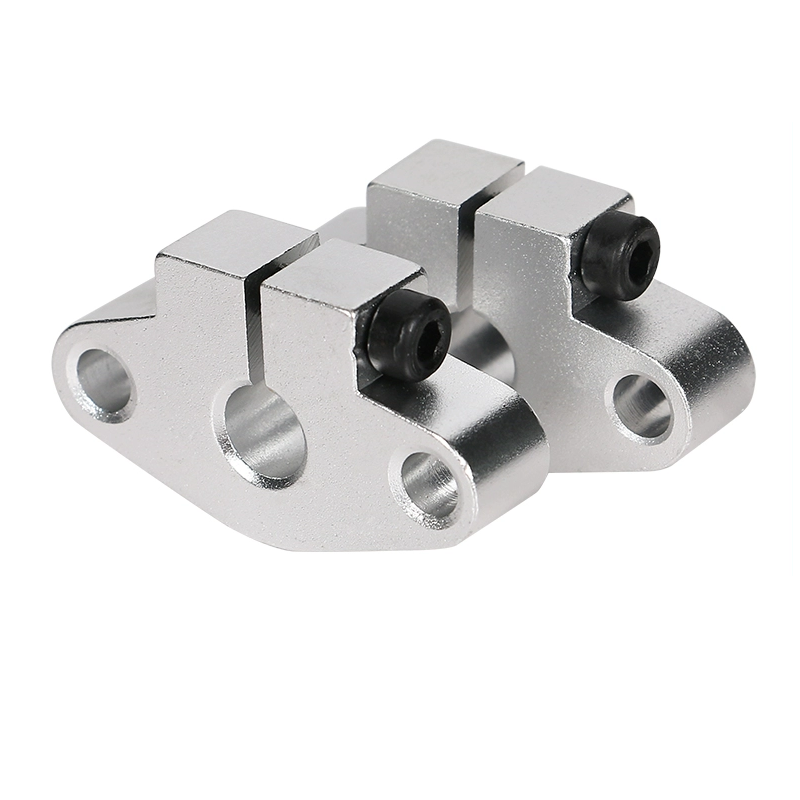

Aluminum Linear Rail Shaft Support

Rated 0 out of 5
0 reviews | 32 sold

CAD$ 2.99CAD$ 3.99

Aluminum Linear Rail Shaft Support. Linear Rod Diameter: 8mm,10mm,12mm,16mm,20mm,25mm,30mm.. LiveChat Customer Support.

SKU: 3427 Category: Tag:
Item Name: Aluminum Linear Rail Shaft Support
Material: Aluminum Alloy
Measurement System: Metric
PCs in Item: 2 PCs
Manufacturer: N/A, Made in China

SHF* Specification
Model Shaft Diameter Dimensions (mm) Installation Bolt Weight (g)
W L T F G B S
SHF8 Ø8 43 10 5 24 20 32 5.5 M5 13
SHF10 Ø10 43 10 5 24 20 32 5.5 M5 13
SHF12 Ø12 47 13 7 28 25 36 5.5 M5 20
SHF16 Ø16 50 16 8 31 28 40 5.5 M5 27
SHF20 Ø20 60 20 8 37 34 48 7 M6 40
SHF25 Ø25 70 25 10 42 40 56 7 M6 60
SHF30 Ø30 80 30 12 50 46 64 9 M8 110
Weight 0.04 kg
Dimensions 6 × 5 × 3 cm
Rod Diameter

8mm, 10mm, 12mm, 16mm, 20mm, 25mm, 30mm

Brand

Industrial-Aluminum
