Water Cooled CNC Spindle Motor 220V

Rated 0 out of 5
0 reviews | 8 sold

CAD$ 137.29CAD$ 232.49

Water cooled CNC Spindle Motor 220V. Power 800W, 1.5KW, 2.2KW. Ship to Canada, USA.
Local Pickup Available: Toronto, Vancouver, Seattle, Philadelphia.

SKU: 5227 Category: Tag:
Item Name: Water cooled CNC Spindle Motor 220V
Feature: 4 x high-quality bearing
PCs in Item: 1 PC (1 Motor, 1 Collet Nut, 1 Circular connector)
Manufacturer: ChangSheng Motor CO., Made in China
Note: This spindle motor is suitable for woodworking, carving, and similar tasks.

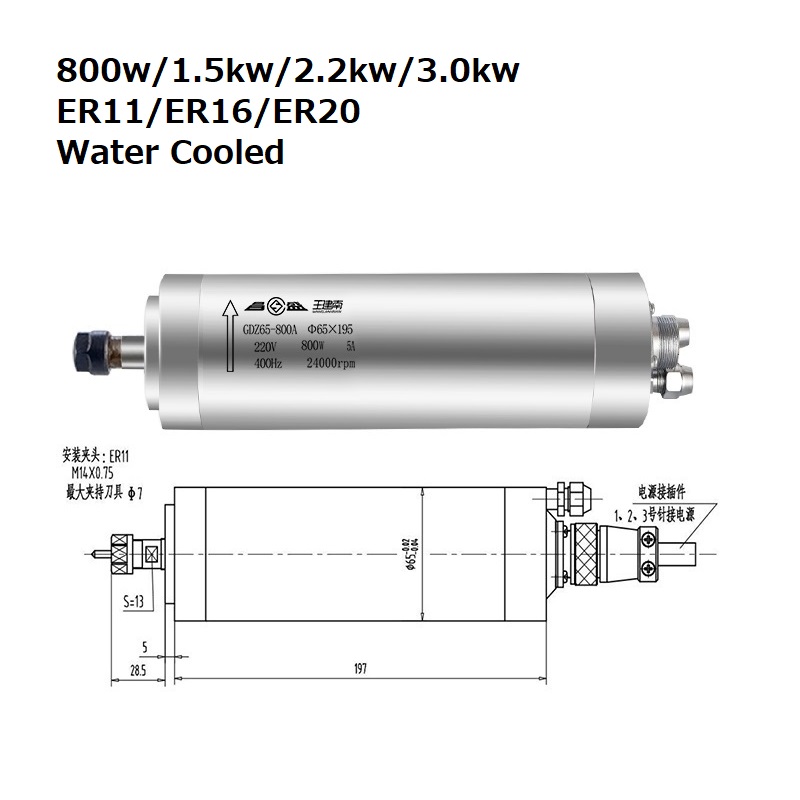

Specs 800W-ER11-65mm 1.5KW-ER11-65mm 2.2KW-ER20-80mm
Model GDZ-65-800A GDZ-65-1.5 GDZ-80-2.2B
Power 800W 1.5KW 2.2KW
Rated Current 5A 5.5A 8A
Input Voltage 220V 50/60Hz 220V 50/60Hz 220V 50/60Hz
Body Diameter 65mm 65mm 80mm
Body Length 195mm 208mm 213mm
Max Speed 24000 rpm 24000 rpm 24000 rpm
Frequency 400Hz 400Hz 400Hz
Collet ER11 ER11 ER20
Number of Bearing 4 4 4
Weight 4 kg
Dimensions 30 × 20 × 20 cm
Model

800W-ER11-65mm, 1.5KW-ER11-65mm, 2.2KW-ER20-80mm

Brand

ChangSheng
