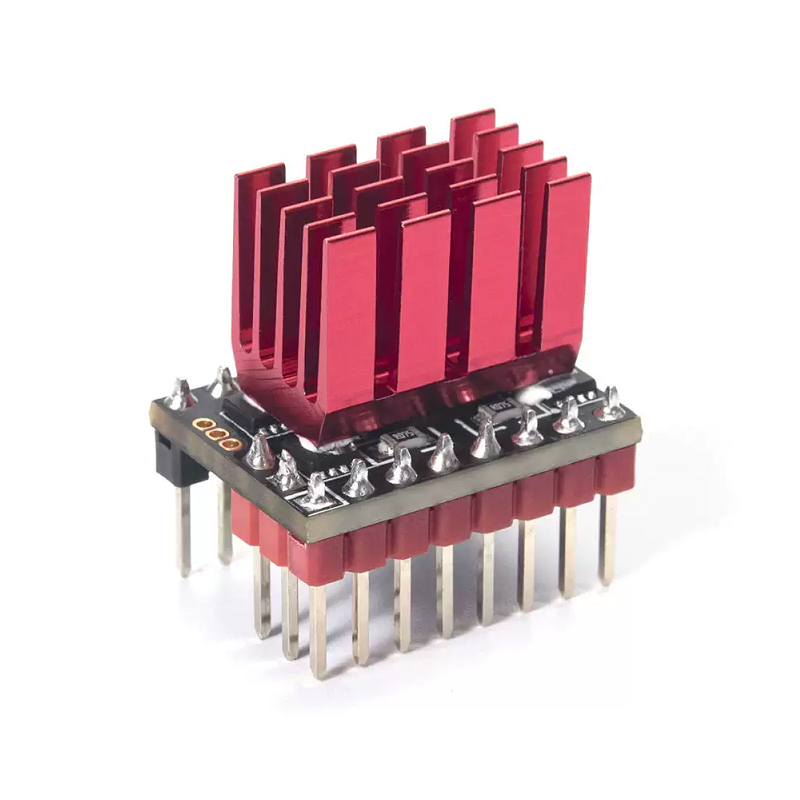

| Item Name: | TMC5160 Stepper Motor Driver Module With Heatsink |
| Feature | 1.Step/direction interface with microstep interpolation microPlyer 2.The highest resolution is 256 subdivisions 3.Support stealthChop2 silent work and smooth motion 4.Supports resonance suppression for mid-range resonance 5.Support spreadCycle high dynamic motor control chopper 6.Support dcStep load related speed control 7.Supports stallGuard2 high-precision sensorless motor load detection 8.Support coolStep current control, which can achieve up to 75% energy saving |
| Measurement System: | Metric |
| Manufacture: | GuangDong, China |
| TMC5160T | TMC5160T Pro | QHV5160 | |
| Chip | TMC5160-TA | TMC5160-TA | TMC5160A-TA |
| Input Voltage | 8V-24V | 8V-56V | 8V-55V |
| Max Current | 3A/4.4A | 3A/4.4A | 3A/4.2A |
| Dimension | 20.4mmx15.3mm | 20.4mmx15.3mm | 25.4mm x 15.24mm |
| Microsteps | 256 | 256 | 256 |
| Work Mode | SPI | SPI | SPI |
| Manufacture | BIGTREETECH | BIGTREETECH | FYSETC |
