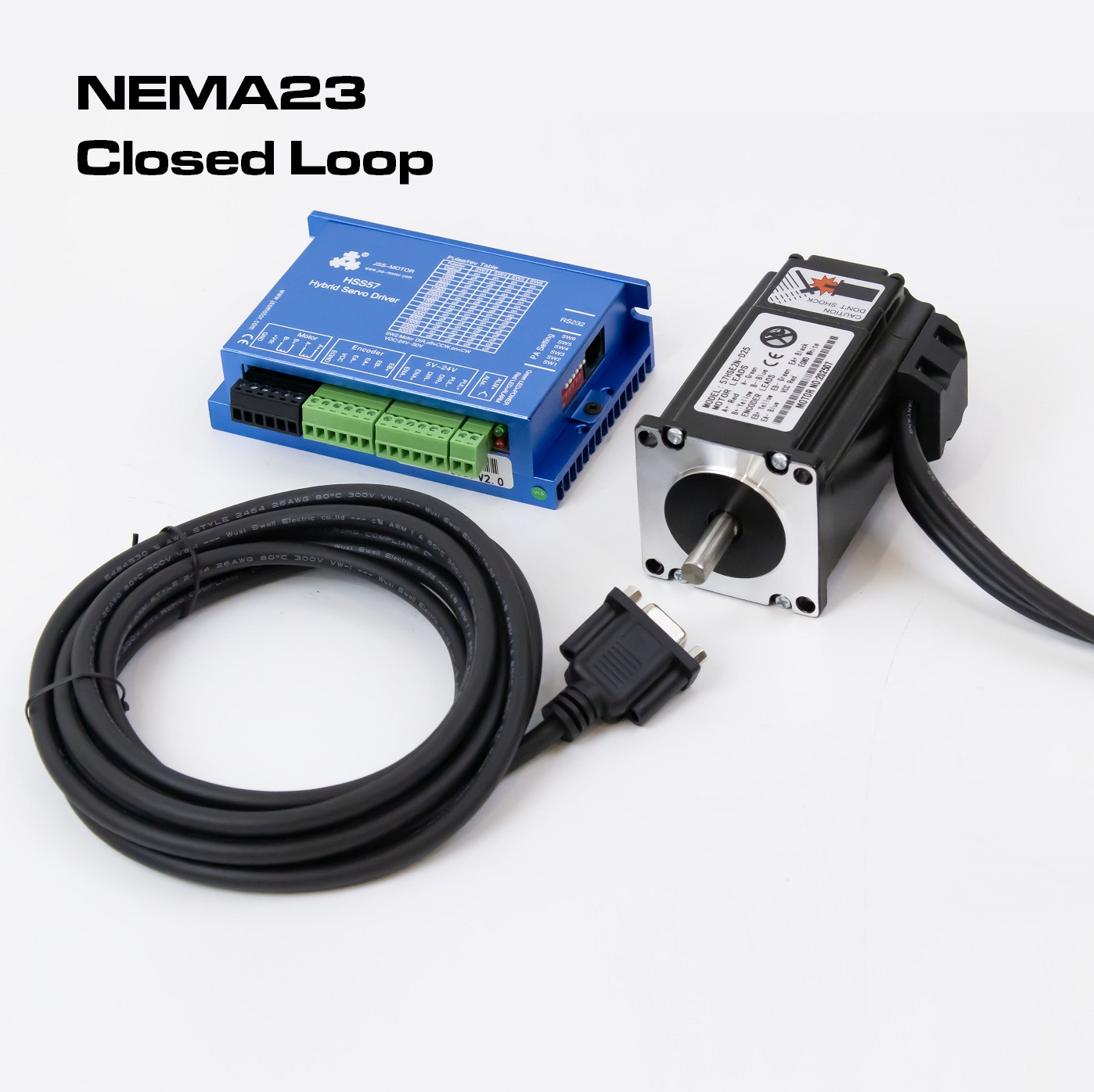

| Item Name: | Nema 23 Closed Loop Stepper Motor Driver with LED, or with driver kits |
| Specification: | Motor 2 Phase, Step Angle 1.8, NEMA 23 (57×57 mm), Closed Loop. HSS57 CL Driver: 32-bit DSP Chip, ModBusRTU on RS232, Stauts and Position and Speed controll Single and double pulse input, up to 200KHz response. |
| PCs in Item: | Motor (with Motor Cable and Encoder Cable) or Kit (Motor, Driver and RS232 – USB Cable) |
| Manufacturer: | LiChuan Motor, GuangDong China |
| Reference: | LiChuan Motor LiChuan Closed Loop Motor Driver |
| Model# | Holding Torque | Rating Current | Operation Voltage | Phase Resistance | Inductance | Body Length | Encoder Lines | Shaft Length | Shaft Diameter |
|---|---|---|---|---|---|---|---|---|---|
| LC57H256 | 1.0Nm | 3.0A | 24~50V | 0.4Ω | 1.2mH | 76mm | 1000P | 25mm | 8mm |
| LC57H265 | 1.5Nm | 3.0A | 24~50V | 0.4Ω | 1.2mH | 85mm | 1000P | 25mm | 8mm |
| LC57H276 | 2.0Nm | 3.0A | 24~50V | 0.5Ω | 1.8mH | 98mm | 1000P | 25mm | 8mm |
| LC57H282 | 2.2Nm | 4.0A | 24~50V | 0.55Ω | 2.2mH | 102mm | 1000P | 25mm | 8mm |
| LC57H2100 | 3.0Nm | 4.0A | 24~50V | 0.55Ω | 1.8mH | 122mm | 1000P | 25mm | 8mm |
| LC57H2112 | 3.5Nm | 4.0A | 24~50V | 0.55Ω | 1.8mH | 134mm | 1000P | 25mm | 8mm |
