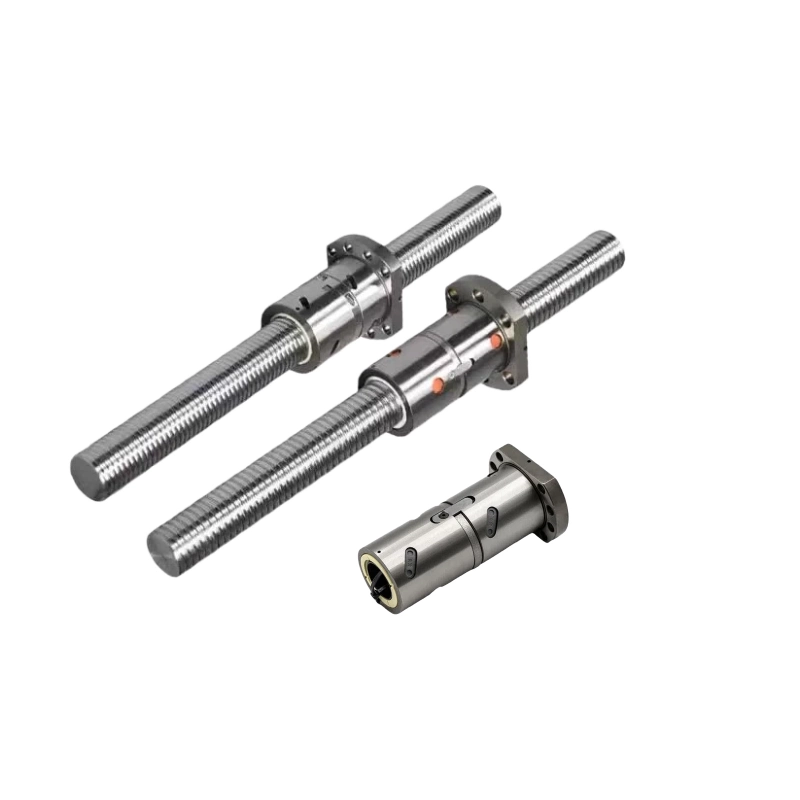

| Item Name: | Ball Screw and Nut SFU 1204 1605 1610 2005 2010 2505 2510 |
| Material: | Carbon Steel, Ball Bearing |
| Processing Options: | Standard Processing for BK/BF,EK/EF,FK/FF Bearing Mount size, or special thread length (Contact Customer Service) C7 Rolled or C5 Ground |
| Measurement System: | Metric |
| PCs in Item: | Ball Screw and Nut are being priced separately. 1) Ball Screw Per CM: Ball Screw only (no nut, no end process), Per single CM. Input the overall length in the Qty box; 2) Standard End Processing: for BK/BF, EK/EF, FK/FF mount stand. Or special end process (please contact to order); 3) Ball Screw Nut. Ball screw nut can be ordered only to replace the old one. |
| Manufacturer: | DongYuan Bearing Technology Inc., ZheJiang, China |
| Reference: | Customizable Ball Screw Ordering |
| Notes: | There are two outer diameters for the 1204 nut: 22mm (by default) and 24mm. Please indicate your choice in the order notes if you choose 24mm. The ball screw comes with the standard end process for BK/KF or EK/EF, there are slight differences. Please specify the process in the ‘Order Notes’ when checking out. |
