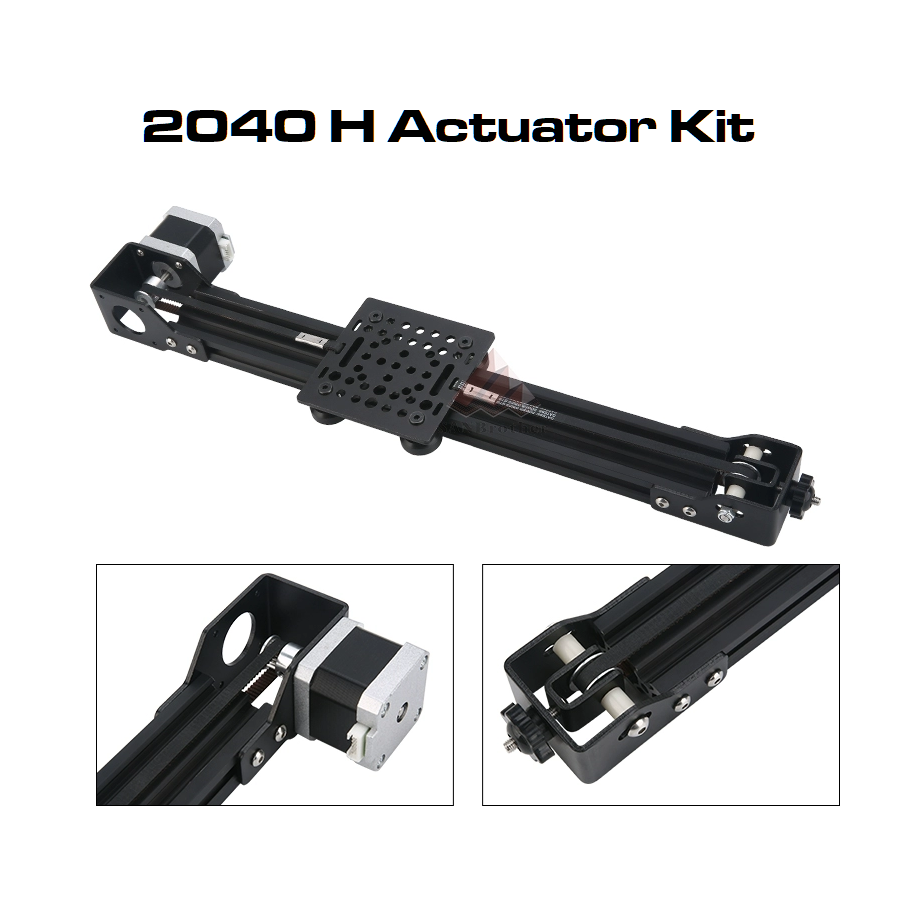

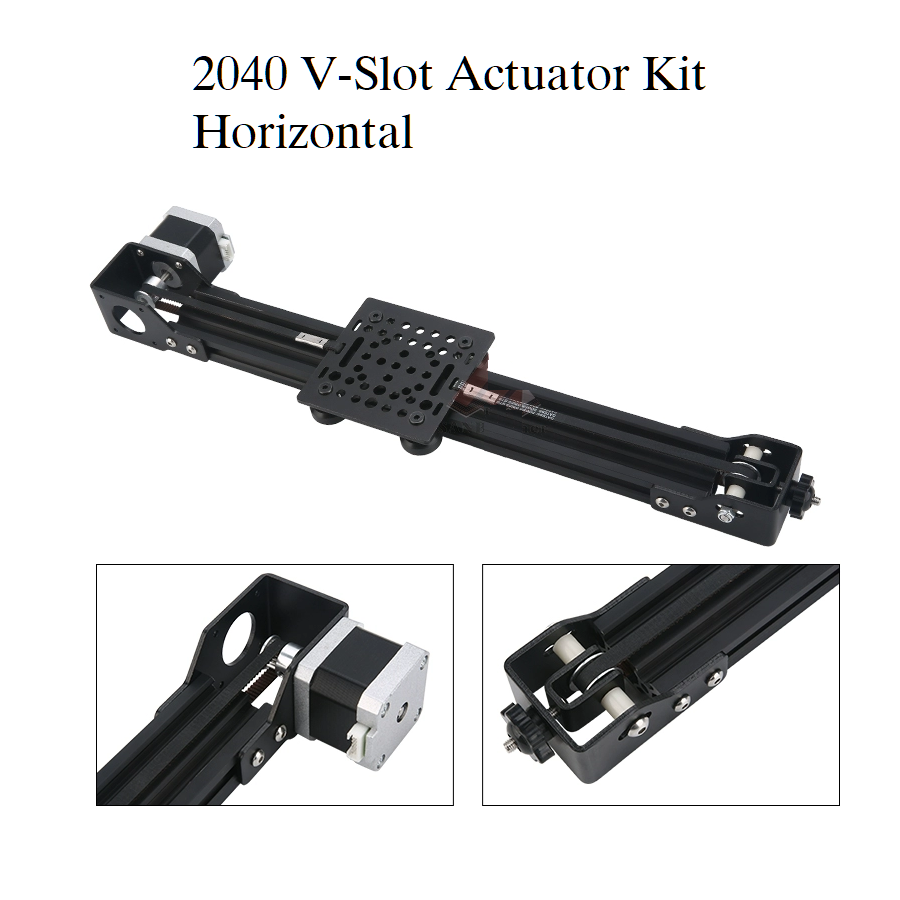

2040 Actuator Motion Control Kit – Horizontal

Name: 2040 Actuator Motion Control Kit - Horizontal
SKU: 24706
Availability: InStock

Rated 0 out of 5

0 reviews | 1 sold

CAD$ 0.16 – CAD$ 75.09

Component

Option

Clear

SKU: 24706 Category: DIY Kits Tag: GPC-1167

Item Name:	2040 Actuator Motion Control Kit – Horizontal
Material:	2040 V Slot. Aluminum Profile 6063-T5, metal etc.
Measurement System:	Metric
Length:	The customized length （buying option) is based on the aluminum extrusion length Total length = length of 2040 + ≈10 cm; effective stroke = length of 2040 − ≈6 mm. For example, if order 50cm length, the total length ≈ 60cm, the effective stroke ≈ 44cm
PCs in Item:	1 Kit (Aluminum Extrusion, Fastener, Mounting Plates, Stepper Motors (48mm, xh2.54 wire), 2GT Timing Belt and Pre-assemplied gantry plate)
Manufacturer:	Designed by DIYCNC.Ca Canada
Reference:	This is custom length product. Please refer Order Custom Length Product
Notes:	Due to packaging limitations, the product is shipped in parts and requires user assembly.

Parts Options

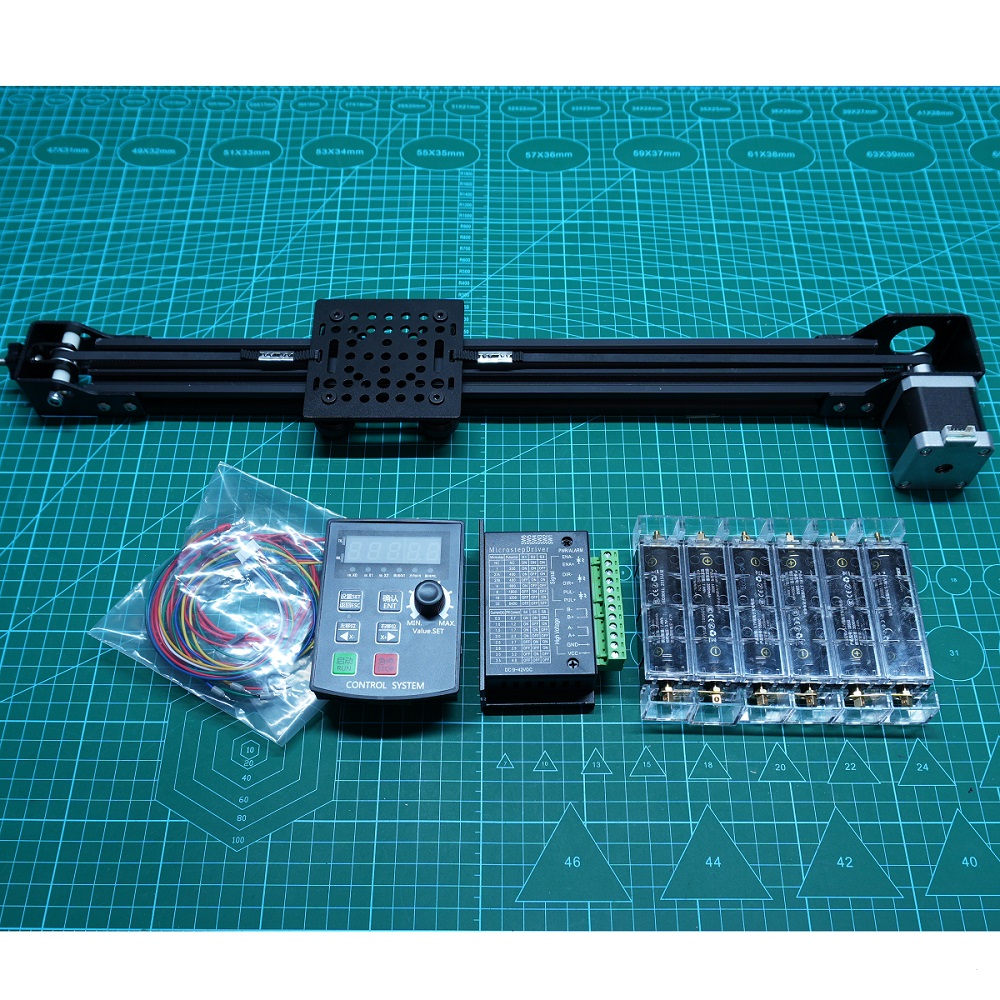

Parts	Basic Kit	Driver Kit A	Driver Kit B
V-Slot	2040 V	N/A	N/A
Fasteners	Included	N/A	N/A
Timing Belt	2GT	N/A	N/A
Timing Belt Tensor	Included	N/A	N/A
Timing Belt Pulley	20 Teeth	N/A	N/A
Stepper Motor	48mm Nema17 x 1	N/A	N/A
Stepper Motor Mount	Included	N/A	N/A
Gantry Plate	Pre-installed POM Wheel for 2040 V-Slot	N/A	N/A
Controller	N/A	Single Axis Controller x 1	Single Axis Controller x 1
Driver	N/A	TB6600 x 1	TB6600 x 1
Power Supply	N/A	18650 7400mWh x 6 with Battery Holder	150W 24V Switch Power Supply with Cable
Others	N/A	Wires	Wires

Weight	5 kg
Dimensions	60 × 20 × 20 cm
Component	Anodized Original 2040 V-Slot, Anodized Black 2040 V-Slot, Driver Kit
Parts	39.99
Option	Basic Kit, Controller Kit A, Controller Kit B
Brand	DIYCNC Canada

Reviews

There are no reviews yet.

Be the first to review “2040 Actuator Motion Control Kit – Horizontal”

You must be logged in to post a review.

Please login to post questions

Question:	Does this include the motor, belt, carriage and track?	User-124080 10-Feb-2026
Answer:	There are different options. The Basic Kit includes all those parts, and Driver Parts Kit are for driver, controllers.
