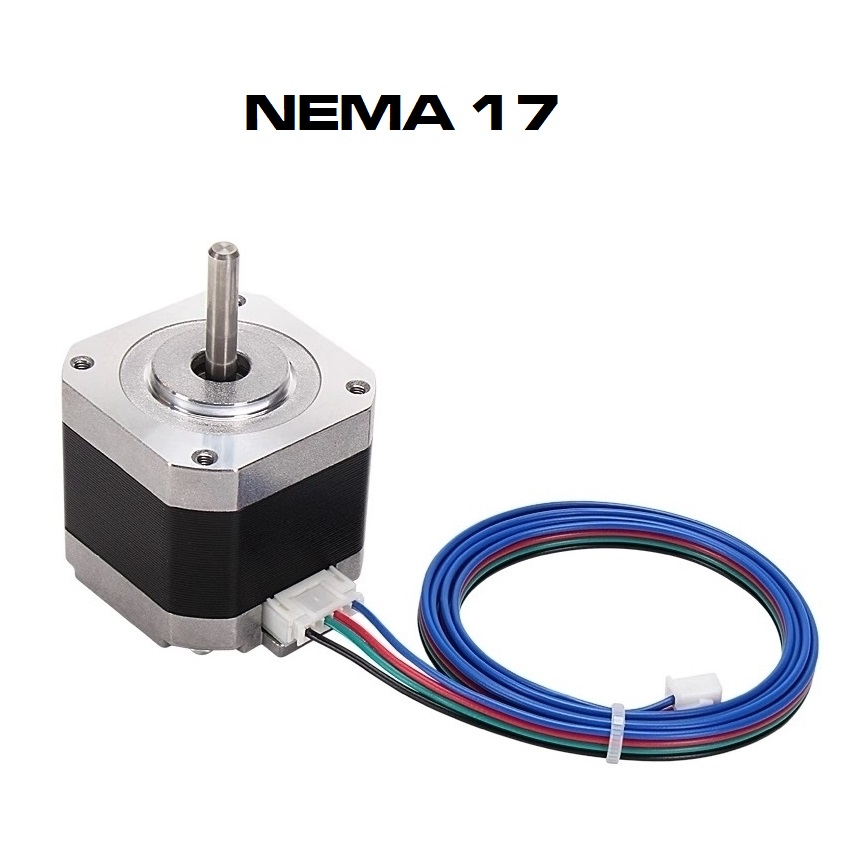

Nema 17 Stepper Motor

1 reviews | 63 sold

CAD$ 5.99CAD$ 16.09

2 Phase NEMA 17 (42 x 42 mm) stepper motor for 3D printer, CNC etc. Multiple length/Torque choices.

SKU: 5208 Category: Tag:
Item Name: Stepper Motor
Specification: 2 Phase, Step Angle 1.8, NEMA 17 (42 x 42 mm)
PCs in Item: 1 PC: Motor x 1, XH2.54 or Dupont Wire x 1)
Manufacturer: N/A, Made in China
Model Step Angle Holding Torque Rated Current Phase Resistance Phase Inductance Length Shaft Length Shaft Diameter Weight
NEMA17-23 1.8 130mN.m 4.1V, 1A 4.3 ohm 4mH 23mm 18mm 5mm 130g
NEMA17-33 1.8 280mN.m 3.0V, 1.5A 2.1 ohm 3.4mH 33mm 18mm 5mm 210g
NEMA17-38 1.8 280mN.m 2.86V,1.3A 2.1 ohm 4.2mH 38mm 18mm 5mm 260g
NEMA17-40 1.8 400mN.m 3.3V,1.5A 2.1 ohm 3.8mH 40mm 15mm 5mm 270g
NEMA17-47 1.8 480mN.m 2.6V,2.0A 1.3 ohm 1.9mH 47mm 18mm 5mm 360g
NEMA17-48 1.8 700mN.m 3.2V,2.0A 1.6 ohm 3.6mH 48mm 18mm 5mm 367g
NEMA17-60 1.8 700mN.m 3.2V,2.0A 1.6 ohm 3.6mH 60mm 26mm 8mm 506g
Weight 0.1 kg
Dimensions 8 × 8 × 8 cm
Model

NEMA17-23, NEMA17-33, NEMA17-38, NEMA17-40, NEMA17-47, NEMA17-48, NEMA17-60

Brand

TongTuo

Cable Connector Type

XH2.54, DuPont

1 review for Nema 17 Stepper Motor

    Nema 17 Stepper Motor photo review
    vantom
    October 22, 2022
    Looks good. I need a smaller one, will try to see if it can work longer.
