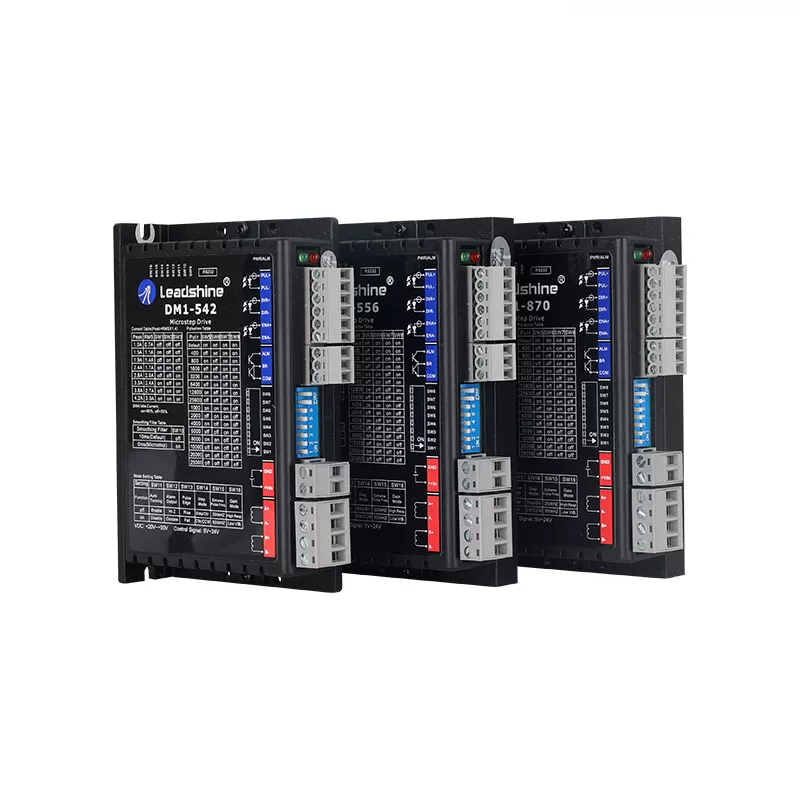

| Item Name: | Leadshine Stepper Motor Driver |
| Description: | Leadshine DM series are highly reliable with good performance and highly competitive cost. They can power a wide range of stepper motors from NEMA 8 to NEMA 53 |
| PCs in Item: | 1 PC |
| Manufacturer: | Leadshine Control Technology Co. Ltd., China |
| Model | DM542(J) | DM542 V3.0 | M545D V4.0 | M556D V4.0 | DM556 V3.0 |
|---|---|---|---|---|---|
| Command Source | PUL & DIR | PUL & DIR | PUL & DIR | PUL & DIR | PUL & DIR |
| Operation Voltage (VDC) | 18V-48V (24/36) | 18V-48V (24/36) | 18V-48V (24/36) | 18V-48V (24/36) | 20V-50V (24/36/48) |
| Output Current (A, Peak) | 1.0-4.2 | 1.0-4.2 | 1.0-4.2 | 1.8-5.6 | 1.8-5.6 |
| Input Frequency (KHZ, Max) | 200 | 200 | 200 | 200 | 200 |
| Logical Voltage (VDC) | 5V/24V | 5V/24V | 5V/24V | 5V/24V | 5V/24V |
| Dimension (mm) | 118 x 75 x 25.5 | 118 x 75 x 25.5 | 118 x 75 x 25.5 | 118 x 75.5 x 34 | 118 x 75.5 x 34 |
| Weight (g) | 230 | 230 | 230 | 280 | 280 |
| Feature | without Brake Port | with Brake Port | |||
| Suitable Motor | Nema 17, Nema 23 | Nema 17, Nema 23 | Nema 17, Nema 23 | Nema 23, Nema 34 | Nema 23, Nema 34 |
