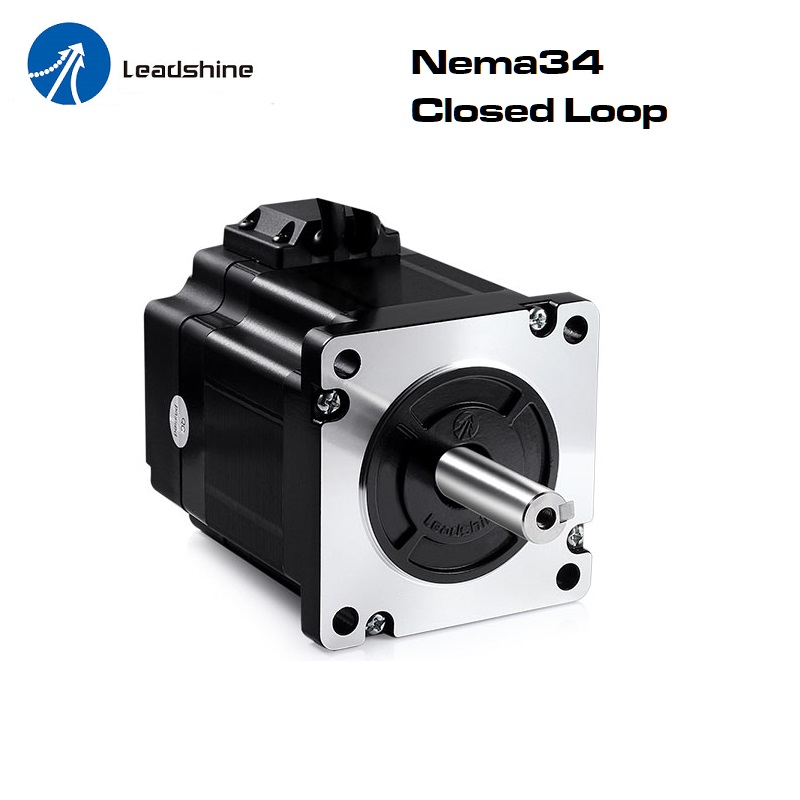

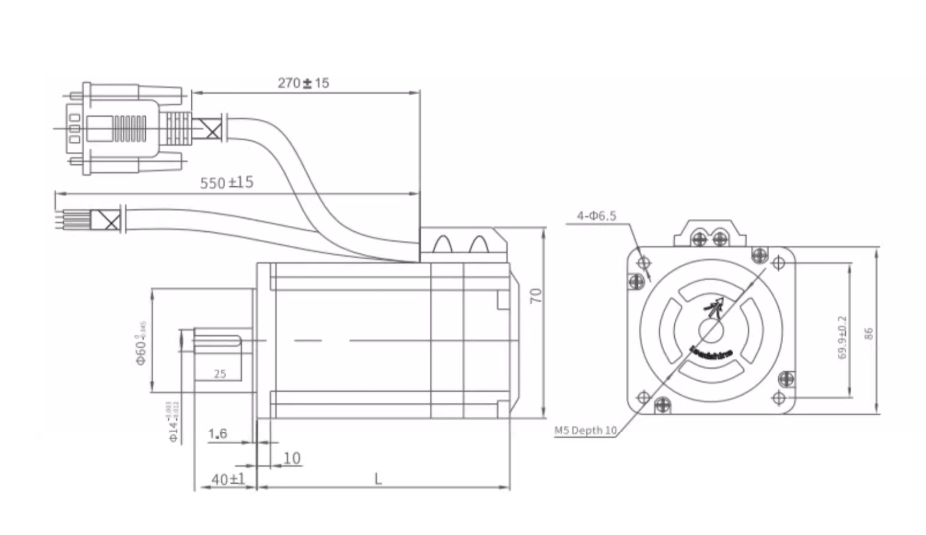

| Item Name: | Leadshine NEMA 34 Closed Loop Stepper Motor Bipolar |
| Feature: | Genuine Leadshine |
| PCs in Item: | 1 PC |
| Manufacturer: | Leadshine Control Technology Co. Ltd., China |
| Warranty: | 1-Year Limited Warranty provided by DIYCNC |
| Reference: | Leadshine CM Series Stepper Motor Leadshine CM Series Stepper Motor Datasheet |
| Notes: | Genuine Leadshine stepper motor from Leadshine. Not OEM, Not Rebranded Stepper motor. Model Number format: – *-BZ: with Brack, body is longer. Plesse see details in Leadshine datasheet above. |
| Model | 86CME35 | 86CME45/45D | 86CME80 | 86CME85/85D | 86CME120 |
|---|---|---|---|---|---|
| Step Angle | 1.8° | 1.8° | 1.8° | 1.8° | 1.8° |
| Number of Phases | 2 | 2 | 2 | 2 | 2 |
| Holding Torque | 3.5Nm | 4.5Nm | 8.0Nm | 8.5Nm | 12.0Nm |
| Operation Voltage | DC 60V | DC 60V | DC 60V | DC 60V | DC 60V |
| Rated Voltage | |||||
| Rated Current | 4A | 6A | 6A | 6A | 6A |
| Phase Resistance | 0.42Ω | 0.43Ω | 0.63Ω | 0.53Ω | 0.75Ω |
| Phase Inductance | 2.67mH | 2.95mH | 4.0mH | 4.25mH | 5.3mH |
| Rotor Inertia | 1000 g-cm² | 1400 g-cm² | 2500 g-cm² | 2700 g-cm² | 2940 g-cm² |
| Shaft Diameter | 14mm | 14mm | 14mm | 14mm | 14mm |
| Shaft Length | 32mm | 32mm | 32mm | 32mm | 32mm |
| Body Length | 95mm | 109mm | 126mm | 147mm | 158mm |
| Weight | 1.8Kg | 2.4Kg | 3.2kg | 3.8Kg | 4.45Kg |
| Wires | 4 – 30cm | 4 – 30cm | 4 – 30cm | 4 – 30cm | 4 – 30cm |
| Insulation Class | B | B | B | B | B |
| Suggested Driver | CL86D | CL86D | CL86D | CL86D | CL86D |
| Encoder | 1000 PPR, 56mA, Output 0.4v-2.4v | 1000 PPR, 56mA, Output 0.4v-2.4v | 1000 PPR, 56mA, Output 0.4v-2.4v | 1000 PPR, 56mA, Output 0.4v-2.4v | 1000 PPR, 56mA, Output 0.4v-2.4v |
| Others |
