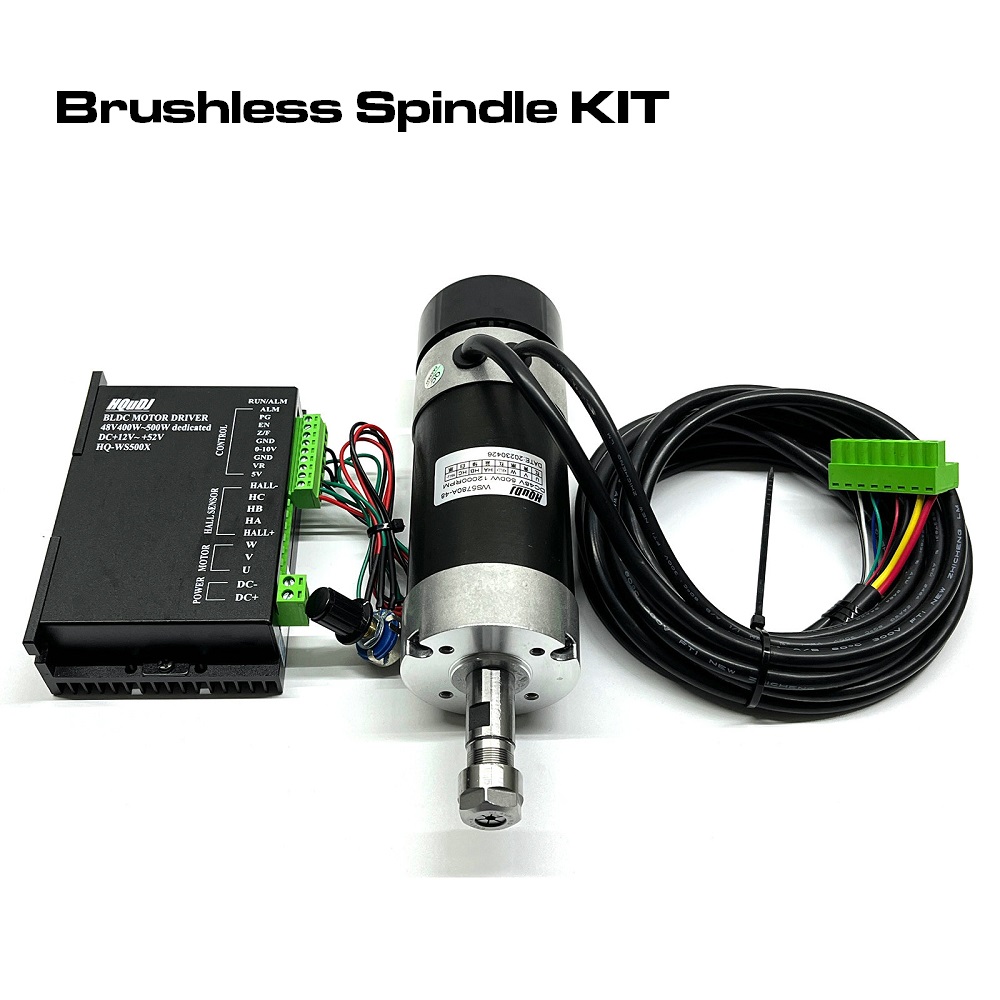

Brushless DC Spindle Motor with Hall Sensor BLDC and Driver Kit

Name: Brushless DC Spindle Motor with Hall Sensor BLDC and Driver Kit
SKU: 23670
Availability: InStock

Rated 0 out of 5

0 reviews | 12 sold

CAD$ 168.09 – CAD$ 268.89

Brushless DC48V Spindle Motor will hall sensor BLDC and Driver Kit. 400W, 500W, ER11, ER16

Spindle Type

Power Supply

Clear

SKU: 23670 Categories: DIY Kits, Spindle and Accessories Tag: GPC-1167

Item Name:	Brushless DC Spindle Motor with Hall Sensor BLDC and Driver Kit
Material:	Multiple
Measurement System:	Metric

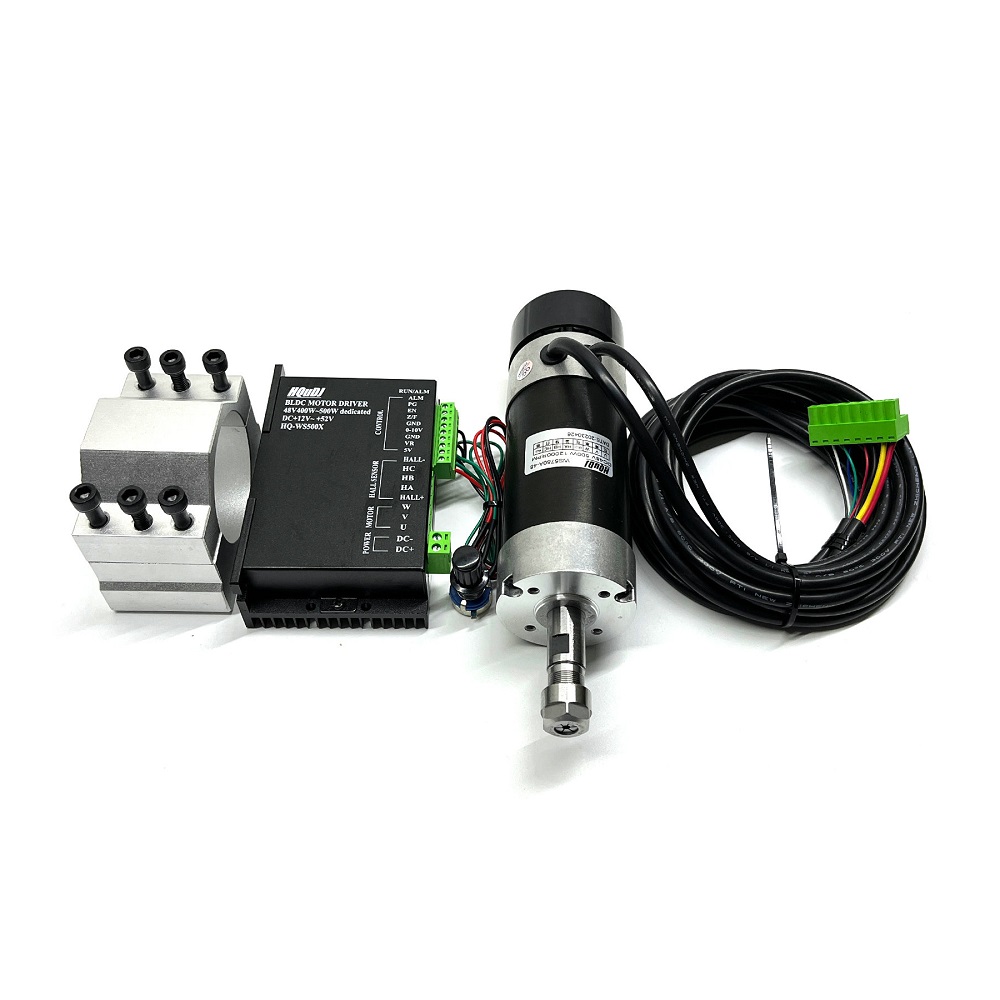

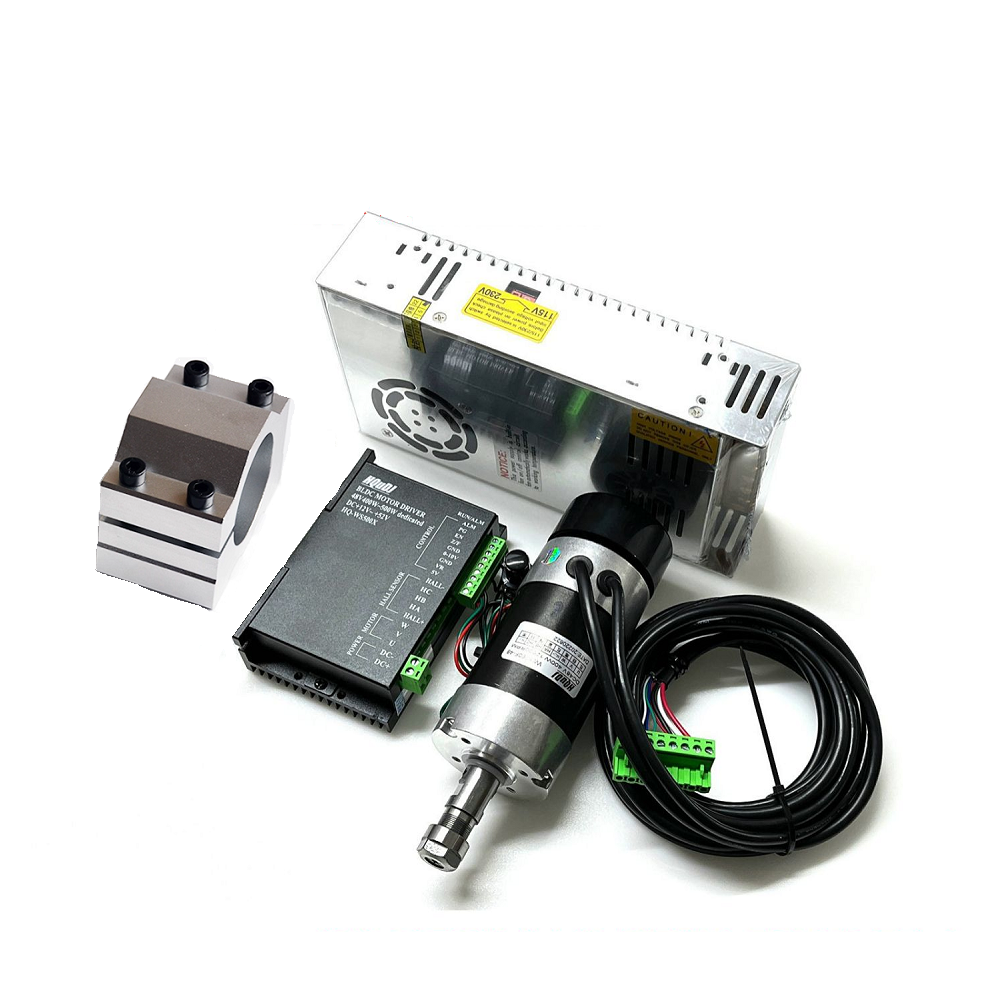

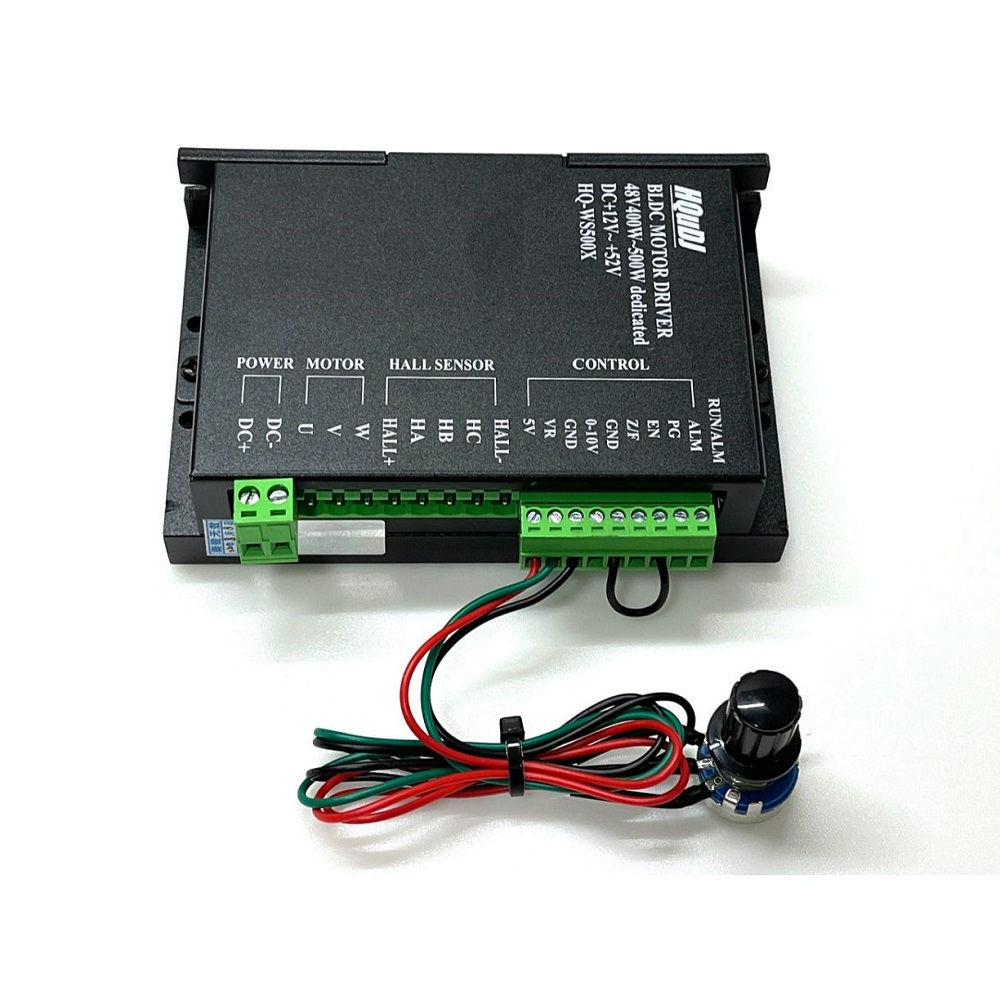

PCs in Item:	Brushless Spindle Motor x 1 55mm Spindle Motor Mount Bracket x 1 Motor driver with Hall Sensor Pins x 1 600W DC48V PSU x 1
Manufacturer:	HDuDj Tech Inc. ChangSha China
Reference:	Full English Brushless Motor Driver User Manual created by DIYCNC

Main Specification:

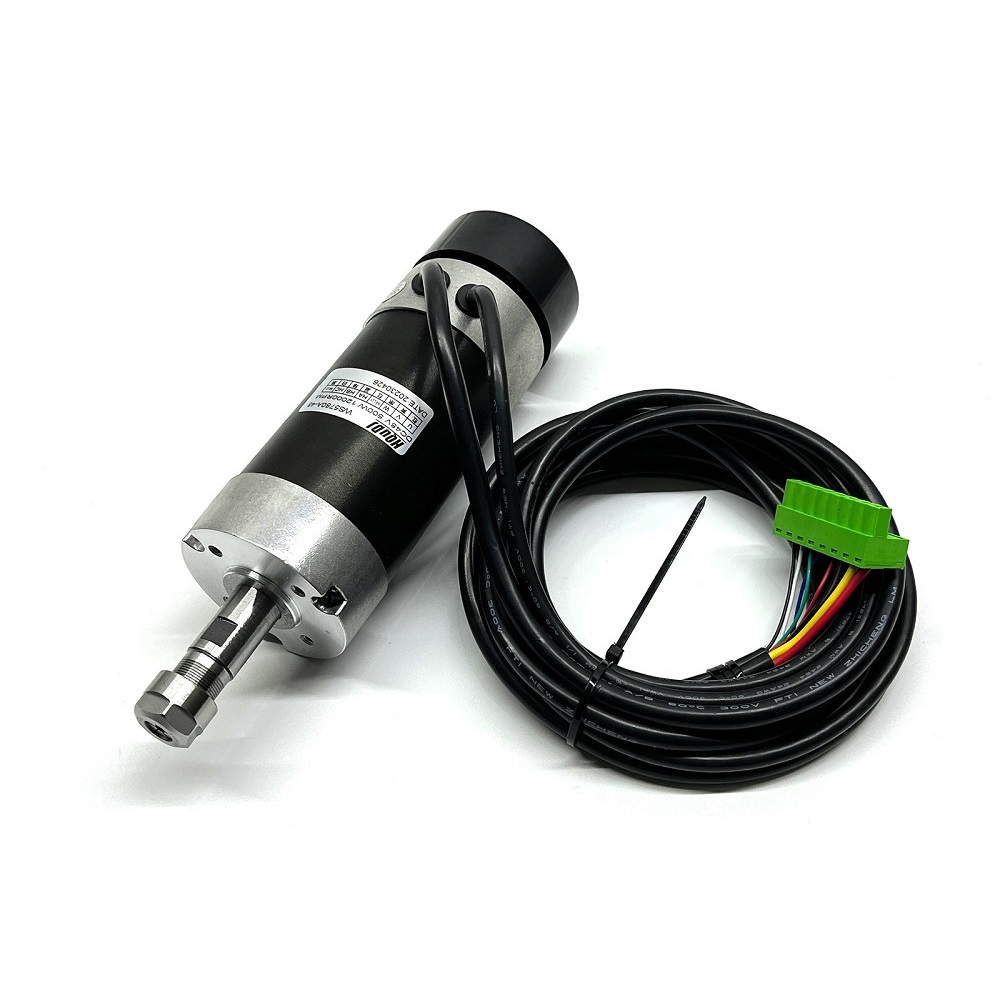

Spindle	Brushless Motor with Genuine NSK Bearing
Working Voltage	DC 12V – DC 52V
Operation Current	12A-15A
Operation Analog Voltage	0-5V, 0-10V
Max RPM	12000/Min
Torque	0.6N.m

Weight	0.2 kg
Dimensions	10 × 6 × 5 cm
Spindle Type	400W ER11, 400W ER16, 500W ER11, 500W ER16
Power Supply	Generic LRS-450-48, Mean Well LRS-450-48, Generic LRS-600-48, Mean Well LRS-600-48, No PSU
Brand	HDuDJ
