| Item Name: | Ball Screw End Support With Motor Mount Bracket |
| Material: | Steel, bearing |
| Measurement System: | Metric |
| PCs in Item: | 1 PC or 1 Set. See buying options |
| Manufacturer: | N/A, Made in China |
| Notes: |
| Mount Bracket | Ball Screw | Recommended Support End | Recommended Ball Screw Seat | Recommended Shaft Coupler | Ball Screw Lock Nut |
| HM10-Nema 23 | 12xx | BF10 | DSG12 | D25-L30 | M10*1 |
| HM10-Servo 60 | |||||

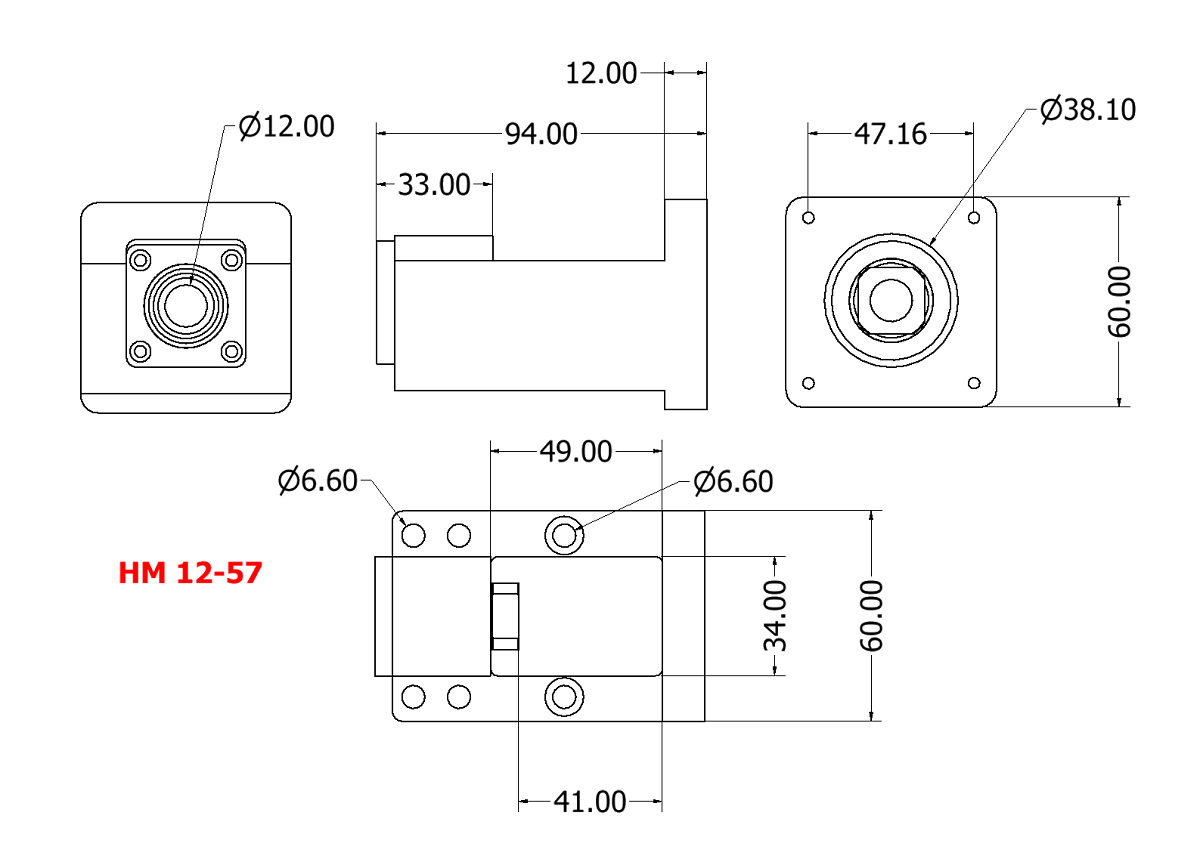

| HM12-Nema 23 | 16xx | BF12 | DSG16 | D30-L40 | M12*1 |
| HM12-Servo 60 | |||||
| HM15-Nema 23 | 20xx | BF15 | DSG20 | D30-L42/D35-L50 | M15*1 |
| HM15-Servo 60 | |||||
| HM15-Servo 80 | |||||
| HM15-Nema 34 | |||||
| HM20-Nema 34 | 25xx | BF20 | DSG25 | D40-L66 | M20*1 |

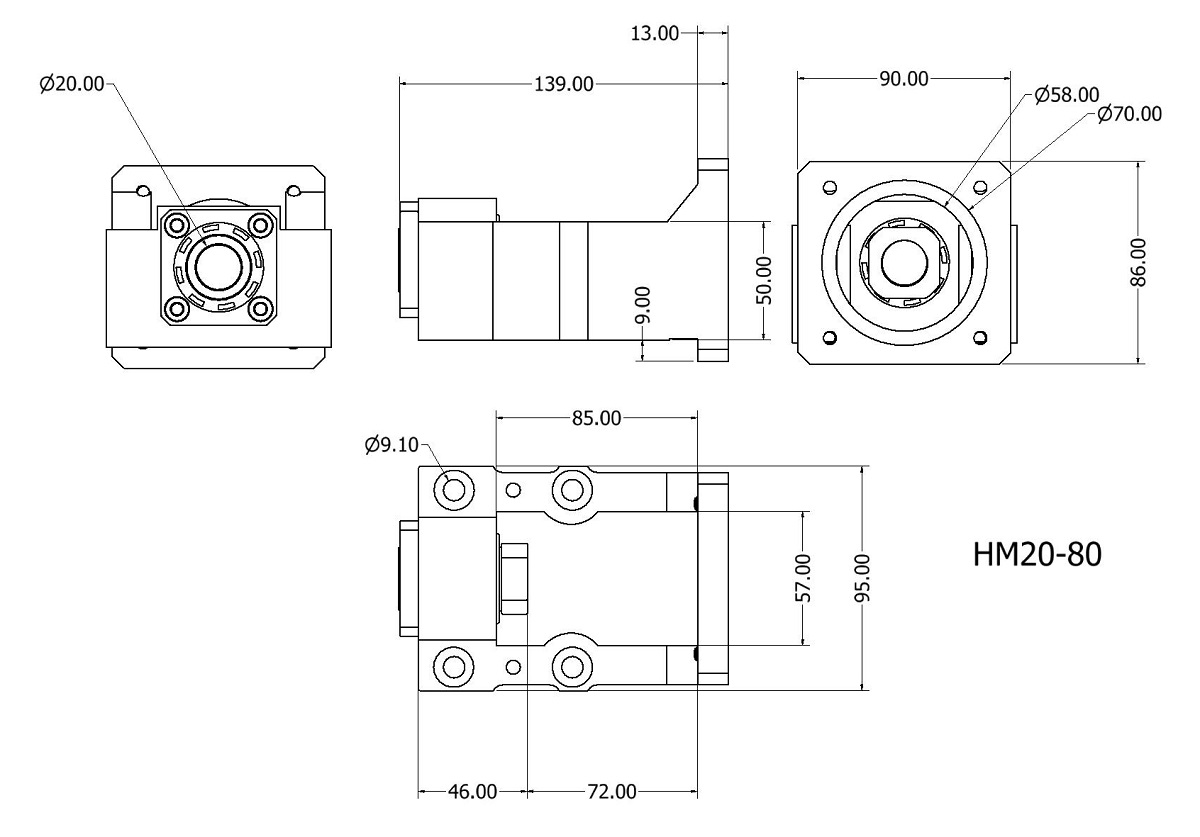

| HM20-Servo 80 | |||||
| HM20-Servo 110 | |||||
| HM20-Reducer 90 |
