Leadshine Nema 17 Closed Loop Stepper Motor and Driver

Name: Leadshine Nema 17 Closed Loop Stepper Motor and Driver
SKU: 17403
Availability: InStock

Rated 0 out of 5

0 reviews | 8 sold

CAD$ 8.09 – CAD$ 68.89

Leadshine Nema 17 Closed Loop Stepper Motor and Driver, one of the best motor for CNC, 3D Printer. Ship to Canada, USA

Model

Clear

SKU: 17403 Category: Nema 17 Stepper Motor Tag: GPC-222

Item Name:	Leadshine Nema 17 Closed Loop Stepper Motor and Driver
Motor Specification:	2 Phase, Step Angle 1.8, NEMA 17 (42×42 mm), Closed Loop.
PCs in Item:	1
Manufacturer:	Leadshine Control Technology Co. Ltd., ShenZhen China
Reference:

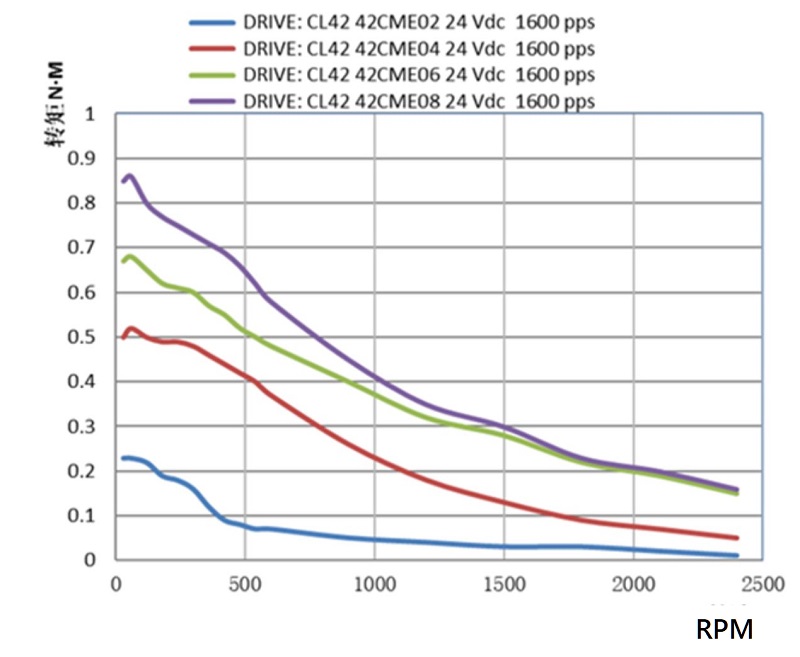

Model#	Length(mm)	Holding Torque(Nm)	Rating Current(A)	Phase Resistance(Ω)	Inductance(mH)	Inertia(g.cm²)	Shaft(mm)
42CME02	56	0.2N.m	1.5	1.4	1.4	35.0	5.0
42CME04	62	0.4N.m	1.5	2.3	4.3	48.0	5.0
42CME04D	62	0.4N.m	1.5	2.3	4.3	54.0	5.0
42CME06	70	0.6N.m	2.5	0.9	1.6	66.0	5.0
42CME06D	70	0.6N.m	2.5	0.9	1.6	72.0	5.0
42CME08	83	0.8N.m	2.5	1.0	2.4	110.0	5.0

Encoder	Optical Incremental. (Avago USA)
Encoder Resolution	4000 PPR
Encoder Output Signal Channels	2 Channels
Output High Voltage	0.4v@20mA Max
Output Low Voltage	2.4v@~20mA min
Shaft Length	24mm
Step Angle	1.8 Deg

Weight	1 kg
Dimensions	20 × 6 × 6 cm
Model	42CME02, 42CME04, 42CME04D, 42CME06, 42CME06D, CL42D Driver, 1.5 Meter Encoder Wire, 3 Meter Encoder Wire
Brand	Leadshine
