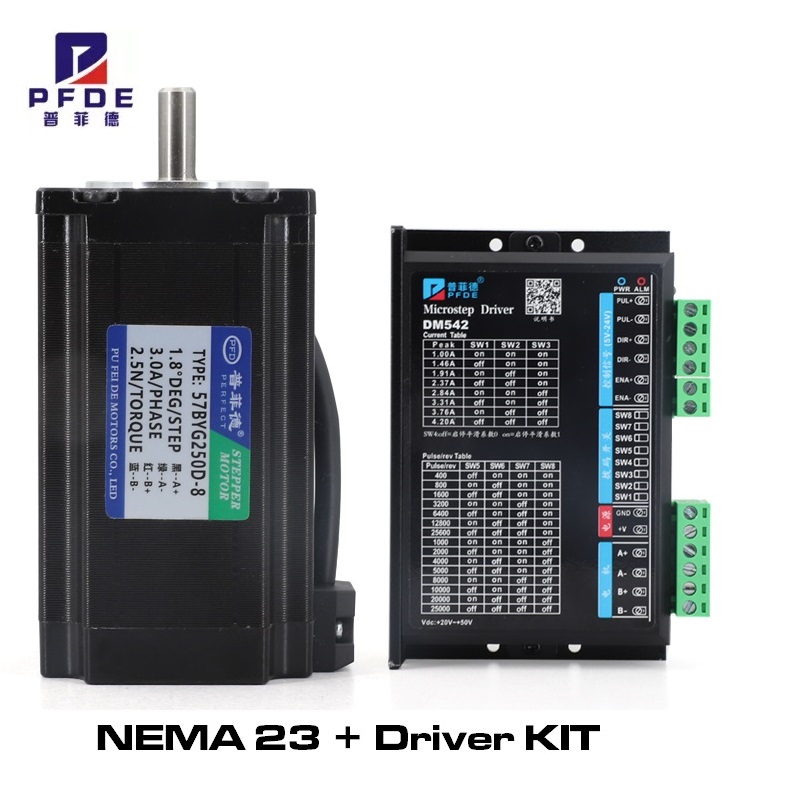

| Item Name: | NEMA 23 Stepper Motor with Driver Kit PFDE |
| Motor Specification: | 2 Phase, Step Angle 1.8, NEMA 23 (57 x 57 mm) |
| PCs in Item: | 1 Set: Stepper Motor + Driver |
| Manufacturer: | GuangDong, China |
| Notes: | This is new combination based on feedback from multiple users. Upgraded DM542S to DM542 (Higher accuracy) |
| Model | Step Angle | Holding Torque | Phase current | Length | Shaft Length | Shaft Diameter |
|---|---|---|---|---|---|---|
| 57BYG250B | 1.8 | 1.2N.m | 3A | 56mm | 21mm | 8 mm |
| 57BYG250C | 1.8 | 1.8N.m | 3A | 76mm | 21mm | 8 mm |
| 57HS22 | 1.8 | 2.3N.m | 3A | 82mm | 21mm | 8 mm |
| 57BYG250D | 1.8 | 2.5N.m | 3A | 100mm | 21mm | 8 mm |
| 57BYG250H | 1.8 | 2.8N.m | 3A | 112mm | 21mm | 8 mm |
